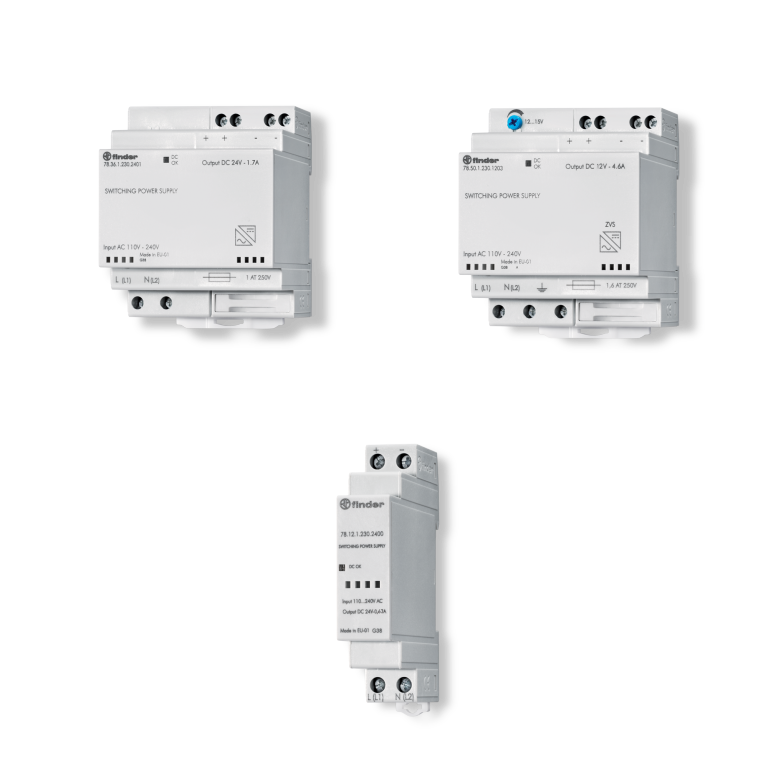

The 78 Series is a range of low profile modular power supplies for electrical cabinets and industrial switch mode power supplies. KNX power supply with rated output 30V DC 640mA available. Other features include (according to Type): Output powers 12, 36, 50, 60, 120 or 130 W; Input (110 … 240) V AC or 220 V DC; Class B according to EN 55022; Replaceable input protection fuse plus spare; Varistor for protection against overvoltages; Width 17.5, 40 or 70 mm
Type 78.60 60 W high efficiency, low profile modular DC power supply for electrical cabinets with ZVS (Zero-voltage-switching), quasi-resonant mode switching. This product is also suitable for battery charging. Features: 24 V DC, 60 W output; Output adjustable between 24-28 V; High efficiency (up to 91%); Low (< 0.4 W) stand-by power consumption; Input fuse: Easily replaceable plus spare; Overvoltage protection: Varistor; Flyback topology; Compliant with EN 60950-1 and...
