60 x 60 x 15 mm - 2.36 x 2.36 x 0.59 in.



Specifications

• Weight: 0.044 Kg / 0.1 Lb
• Housing in plastic UL 94 V-0
• Impeller in plastic UL 94 V-0
• L-10 life expectancy at 40°C: 70,000 hours
• Operating temperature range: -10 / +70°C
• Storage temperature: -40 / +70°C
• Connection: Leads
• Brushless DC motor
• Integrated circuit



Options

• Speed Sensor
• Alarm
• Other IP levels

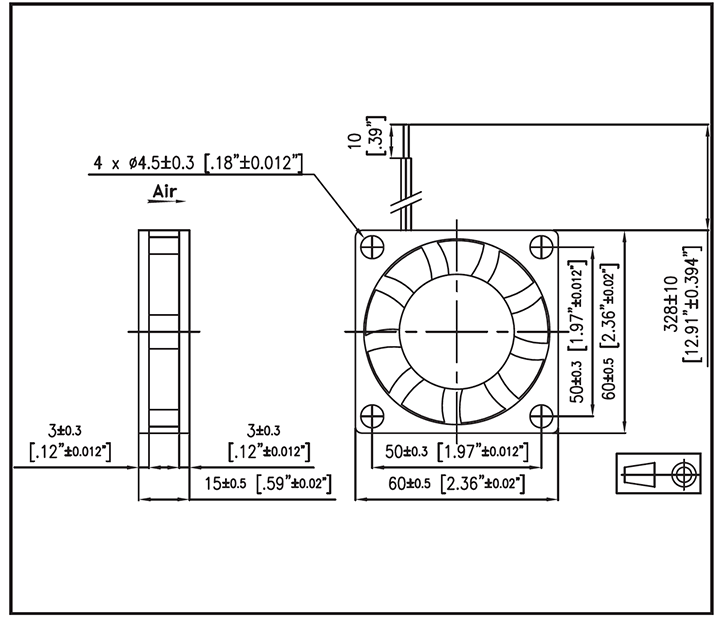

Dimensions

Documents and Downloads

Document	File Type	File Size	Download
ETRI / Rosenberg Catalog	PDF	10.7 MB
