274D Series

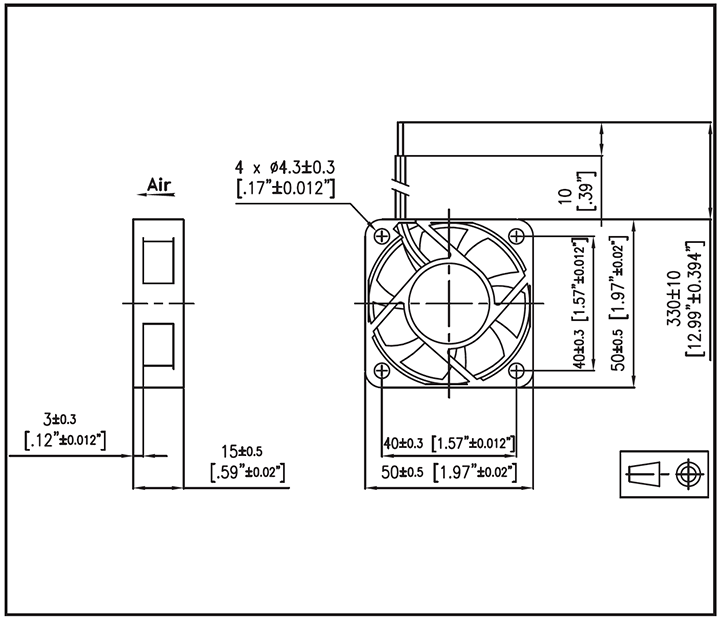

50 x 50 x 15 mm - 1.97 x 1.97 x 0.59 in.
Specifications
Weight: 0.032 Kg / 0.07 Lb
Housing in plastic UL 94 V-0
Impeller in plastic UL 94 V-0
L-10 life expectancy at 40°C: 70,000 hours
Operating temperature range: -10 / +70°C
Storage temperature: -40 / +45°C
Connection: Leads
Brushless DC motor
Integrated circuit
Options
Speed Sensor
Alarm
Other IP levels
