This Product has been Discontinued

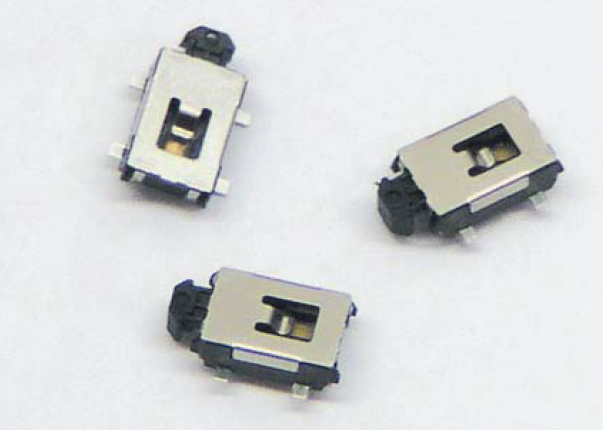

Features & Benefits



• Right Angle SMT
• Unique design allows PC board edge mounting
• Subminiature package size

Applications for the 910 series tact switch include:



• Telecommunications
• Consumer Electronics
• Audio/visual
• Medical
• Testing/instrumentation
• Computer/servers/peripherals

Detail Specs

Contact Rating:	12 VDC, 50mA
Life Expectancy:	50,000 cycles
Contact Resistance:	100mΩ max. (initial)
Insulation Resistance:	100MΩ min. @ 100 VDC
Dielectric Strength:	250 VAC
Actuator Force:	180 ± 50 gf min.
Operating Temperature:	-20°C to +70°C
Travel:	0.30 ±0.1mm

Documents and Downloads

Document	File Type	File Size	Download
901 Series Datesheet	PDF	201 KB
