Model Image Description
5500 Series Illuminated Pushbutton Switches (5501 and 5511)
5500 Series E-Switch Pushbutton Switch
  • 50mA 12VDC rating
  • Through hole mounting design
  • Single or dual LED options
  • Momentary actuation
700A Series IP-67 Sealed Pushbutton Switches
700A Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC rating
  • Through hole mounting design
  • 1 or 2 poles momentary functions
  • IP67 sealed
700C Series Alternate Action, Miniature Pushbutton Switch
700C Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC rating
  • Through hole mounting design
  • 1 pole latching function
  • Variety of bushing and terminal options
700 Series Snap-Acting, Panel Mount Push Button Switches
700 Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC rating
  • 1 or 2 poles momentary functions
  • Panel mount design
  • Solder lug and quick connect termination
700 Series Snap-Acting Push Button Switches
700 Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC rating
  • Through hole mounting design
  • 1 or 2 poles momentary functions
  • Variety of bushing and terminal options
800A Series Sealed, Sub-miniature Pushbutton Switches
800A Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC
  • Through hole mounting design
  • 1 pole momentary functions
  • IP67 sealed
800B Series SMT, Sealed, Sub-Miniature Pushbutton Switches
800B Series E-Switch Pushbutton Switch
  • 4VA Max
  • Surface mount design
  • 1 pole either in single or double throw options
  • Tape and reel packaging available
800C Series Alternating Action Miniature Pushbutton Switch
800C Series E-Switch Pushbutton Switch
  • Miniature in size
  • Multiple termination options
  • Alternating action pushbutton
800 Series Sub-Miniature Pushbutton Switches
800 Series E-Switch Pushbutton Switch
  • 3A 120VAC or 28VDC rating
  • Through hole mounting design
  • 1 pole momentary functions
  • Variety of bushing and terminal options
800U Series Caps
800U Series E-Switch Pushbutton Switch
  • Caps for the 800U series pushbutton
  • Ultra-miniature
  • Red, black or white color options
  • 4mm diameter in size
800U Ultraminiature Pushbutton Switch
800U Series E-Switch Pushbutton Switch
  • Ultra-miniature in size
  • IP67 rated
  • Multiple termination and color options
  • Single or double pole
D16 Series Illuminated Pushbutton Switches
D16 Series E-Switch Pushbutton Switch
  • 8A 125VAC rating
  • Circular, rectangular, and square panel mount designs
  • Momentary and maintained functions
  • Exclusive solder lug design
E100 Series Pushbutton Switch E100 Series E-Switch Pushbutton Switch
  • Easy operation
  • High actuation force
  • Multiple illumination options
  • Pushlock turn design to reset
  • 16mm cutout size
  • IP65 rated
E200 Series Pushbutton Switch E200 Series E-Switch Pushbutton Switch
  • Easy operation
  • High actuation force
  • Multiple illumination options
  • Pushlock turn design to reset
  • 16mm cutout size
  • IP65 rated
FS5700 Series Pushbutton Foot Switch
FS5700 Series E-Switch Pushbutton Switch
  • SPDT, DPDT or 3PDT
  • Momentary or alternate action functions
  • High actuation force
  • PCB mount or panel mount option
KJD17 Series Heavy Duty, Industrial Power Pushbutton Switches
KJD17 Series E-Switch Pushbutton Switch
  • 46mm x 22mm x 2.5mm panel cutout
  • 16A 120VAC 1/2HP with IP54 rating
  • Off-On, Off-On with Remote Trip, and NO and NC with Remote Trip functions
KS1100 Series Pushbutton Switch With Keyboard Functionality
KS1100 Series E-Switch Pushbutton Switch
  • 10mA 12VDC rating
  • 1 Pole SPST Momentary Function
  • Long Travel
  • 50,000,000 Electrical Life
  • Low Actuator Force
L16 Series Illuminated, Pilot Indicator
L16 Series E-Switch Pushbutton Switch
  • 8A 125VAC rating
  • Circular, rectangular, and square panel mount designs
  • Full illumination options
  • Exclusively a pilot indicator light
LA Series Sealed, Illuminated Pushbutton Switches
LA Series E-Switch Pushbutton Switch
  • 8A 125VAC rating
  • Circular panel cutouts from 22mm to 30.5mm in diameter
  • Full illumination options
  • Momentary, maintained and pilot functions

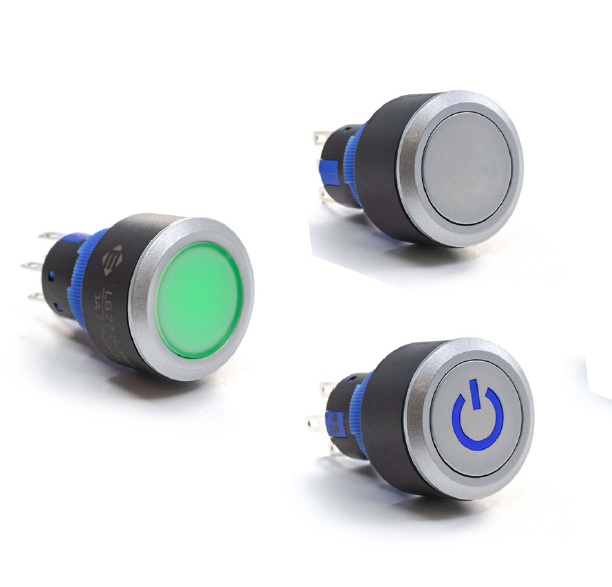

LB22 Multiple Colored Pushbutton Switch LB22 Series E-Switch Pushbutton Switch
  • 3A, 250VAC
  • Single or Double Throw options
  • IP65-rated Pushbutton Switch with Full Illumination and Power Symbol options.
  • 5 Transparent Actuator Color options
LC Series Pushbutton Switches
LC Series E-Switch Pushbutton Switch
  • 300mA 30VDC rating
  • Through hole mounting design
  • Momentary and maintained functions
  • Shorting and non-shorting versions
LP11 Series Illuminated Pushbutton
LP11 Series E-Switch Pushbutton Switch
  • RGB or multiple bi-color illumination options
  • Tactile or non tactile feel
  • Multiple cap sizes
  • Long electrical life
  • Latching and momentary functions
LP15 Series Illuminated Pushbutton Switch
LP15 Series E-Switch Pushbutton Switch
  • 1mA 20VDC rating
  • Through hole mounting design
  • Full LED illumination options
  • 1 pole momentary function
LP16 Series Long Life, Illuminated Pushbutton Switch
LP16 Series E-Switch Pushbutton Switch
  • 50,000,000 cycle life expectancy
  • Long, 3.3mm travel
  • Multiple illumination options
  • 2 cap sizes
LP1 Series Illuminated, Round Pushbutton with Multiple Color Options
LP1 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • 8.2mm panel cutout
  • Full LED illumination options
  • 1 pole momentary function
LP2 Series Illuminated Pushbutton Switch
LP2 Series E-Switch Pushbutton Switch
  • 5mA 5VDC rating
  • Through hole mounting design
  • Full LED illumination options
  • 1 pole momentary function
LP37 Series Illuminated, Right Angle Pushbutton Switch
LP37 Series E-Switch Pushbutton Switch
  • 10mA 20mVDC to 250mA 50VDC
  • Right angle surface mount design
  • Multiple LED illumination options
  • SPDT momentary function
LP4 Series Illuminated Pushbutton Switch
LP4 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • Right angle and vertical through hole mount design
  • Full LED illumination options
  • 2 poles momentary and maintained functions
LP6 Series Illuminated Pushbutton with Multiple LED Color Options
LP6 Series E-Switch Pushbutton Switch
  • 12mA 12VDC rating
  • Through hole mount design
  • Full LED illumination options
  • 1 or 2 poles momentary functions
P16 Series Illuminated Pushbutton Switches
P16 Series E-Switch Pushbutton Switch
  • 8A 125VAC rating
  • Circular, rectangular, and square panel mount designs
  • Momentary and maintained functions
  • Exclusive socket design
PA4 Series Illuminated, Power Pushbutton Switches
PA4 Series E-Switch Pushbutton Switch
  • 16A 125VAC rating
  • 13mm x 19mm panel cutout
  • Full illumination options
PA5 Series Power Pushbutton Switches
PA5 Series E-Switch Pushbutton Switch
  • 16A 125VAC rating
  • 13mm x 19mm panel cutout
  • 1 or 2 poles momentary and maintained functions
PB1973 Series Snap in, Illuminated, Panel Mount Pushbutton
PB1973 Series E-Switch Pushbutton Switch
  • 15A 250VAC rating
  • 13mm x 19.2mm panel cutout
  • Full illumination options
  • 1 or 2 poles momentary and maintained functions
PB2 Series Illuminated, Power Pushbutton Switches
PB2 Series E-Switch Pushbutton Switch
  • 20A 125VAC with IP54 rating
  • 22mm x 30mm panel cutout
  • Spot illumination options
PB300 Series Long Travel Pushbutton Switch
PB300 Series E-Switch Pushbutton Switch
  • SPST or SPDT/Double Action
  • Double action - 1st circuit closes mid travel, second at full travel
  • Long travel, momentary
  • High actuation force
  • Firm tactile response
PB400 Series Pushbutton Switch
PB400 Series E-Switch Pushbutton Switch
  • Low cost
  • Right Angle pushbutton switch
  • DPST
  • Momentary or Latching function
  • 3.2mm travel
  • Optional black cap
PBH Series Miniature Pushbutton Switch
PBH Series E-Switch Pushbutton Switch
  • 100mA 30VDC
  • PC board mount design
  • Up to 6 poles with momentary and maintained functions
PMV6 Series Anti-Vandal Switch
PMV6 Series E-Switch Pushbutton Switch
  • 16mm panel cutout
  • UL3385 20AWG pre-stripped and tinned wire leads
  • Multiple Cap Colors
  • 10,000 Cycle Electrical Life
  • Crisp tactile response
  • IP67 rated
PP1 Series Push Pull Pushbutton Switches
PP1 Series E-Switch Pushbutton Switch
  • 16A 125VAC 1HP rating
  • 13.3mm x 28.2mm panel cutout
  • 1 pole push-pull function
PP2 Series Push Pull Pushbutton Switches
PP2 Series E-Switch Pushbutton Switch
  • Up to 16A 125VAC 1HP rating
  • 13.5mm x 36mm panel cutout
  • 2 poles push-pull function
PV0 Series IP65 Illuminated Anti-vandal Switch
PV0 Series E-Switch Pushbutton Switch
  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options
  • IP65 rated
PV10 Series Anti-vandal Switch
PV10 Series E-Switch Pushbutton Switch
  • 40mm diameter panel cutout
  • Dot or ring illumination options available
  • Multiple switch functions available
  • Multiple illumination voltage options
  • IP65 rated
  • SPDT or DPDT
PV1 Series Long Life, Water Resistant Anti-vandal Switches
PV1 Series E-Switch Pushbutton Switch
  • 19mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Solder and screw terminal options available
PV2 Series Water Resistant, Long Life Anti-vandal Switches
PV2 Series E-Switch Pushbutton Switch
  • 16mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Solder and screw terminal options available
PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switches
PV3 Series E-Switch Pushbutton Switch
  • 16mm diameter panel cutout
  • Dot and ring illumination options available
  • 1 or 2 poles momentary functions
  • Non-sealed and sealed options configurable
PV4 Series Illuminated, Sealed, Long Life Anti-vandal Switches
PV4 Series E-Switch Pushbutton Switch
  • 19mm diameter panel cutout
  • Dot and ring illumination options available
  • 1 or 2 poles maintained, momentary and double break functions with IP65 rating
  • RGB LED available
PV5 Series Sealed, Long Life Anti-vandal Switches
PV5 Series E-Switch Pushbutton Switch
  • Solder terminal options available
  • 1 pole momentary switch
  • IP65 rated
PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switches
PV6 Series E-Switch Pushbutton Switch
  • 16mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Dot and ring illumination options available
  • Solder terminals
PV7 Series Anti-vandal, Illuminated, Long Life Switches
PV7 Series E-Switch Pushbutton Switch
  • 22mm diameter panel cutout
  • Dot or ring lens options
  • Multiple LED colors
  • 1 pole double break function
  • IP65 rated
PV8 Series Illuminated, Sealed Anti-vandal Switches
PV8 Series E-Switch Pushbutton Switch
  • 25mm diameter panel cutout
  • Dot and ring illumination options available
  • 1 or 2 poles maintained and momentary double break functions
  • IP65 rated
PV9 Series Sealed Illuminated Anti-vandal Switch
PV9 Series E-Switch Pushbutton Switch
  • 28mm diameter panel cutout
  • Dot or ring illumination options available
  • Multiple switch functions available
  • IP66 rated, SPDT or DPDT
PVA3 Series Anti-vandal Switch
PVA3 Series E-Switch Pushbutton Switch
  • 16mm panel cutout
  • Ring illumination option
  • Multiple LED color options
  • IP65 rated
  • Momentary or Latching functions
PVA6 Series Anti-vandal Switch
PVA6 Series E-Switch Pushbutton Switch
  • 16mm diameter panel cutout
  • Solder lug or wire leads (500mm long) termination
  • Ring or power symbol illumination options
  • IP67 rated, Off-(On), SPST
  • Refer to Detail Specs for PVA6L - latching version
PVS7 Series Anti-vandal Switch
PVS7 Series E-Switch Pushbutton Switch
  • 22mm diameter panel cutout
  • Wire leads available
  • RGB LED option
  • Ring illumination avaliable
  • Multiple function options
  • IP65 rated
  • SPDT & DPDT
  • Soldered wire leads (300mm long) optional
PVT4 Series Illuminated, Tactile Response Anti-vandal Switch
PVT4 Series E-Switch Pushbutton Switch
  • 19mm panel cutout
  • Solder lug or wire lead termination options
  • Ring illumination
  • LED color options
  • Crisp tactile response
  • IP65 rated
RP3508 Series Round, Illuminated Pushbutton
RP3508 Series E-Switch Pushbutton Switch
  • 3A 125VAC rating
  • 15mm x 16mm rounded edge panel cutout
  • Full LED illumination options
  • 1 pole momentary and maintained functions
RP8100 Series Round, Illuminated Pushbutton
RP8100 Series E-Switch Pushbutton Switch
  • 125mA 125VAC rating
  • SPST momentary (500,000 life cycles)
  • IP67 sealed; Nylon housing & actuator
RP8200 Series Illuminated, Round Pushbutton Switch
RP8200 Series E-Switch Pushbutton Switch
  • 100mA 24VDC rating
  • SPST maintained function (200,000 life cycles)
  • IP67 sealed, nylon housing & actuator
RP8300 Series Round, Illuminated, Panel Mount Pushbutton Switch
RP8300 Series E-Switch Pushbutton Switch
  • 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC ratings
  • SPST momentary (500,000 life cycles)
  • IP67 sealed, Die cast housing with nylon actuator
RP8400 Series Square, Illuminated Pushbutton Switch
RP8400 Series E-Switch Pushbutton Switch
  • 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC ratings
  • 13.6mm diameter panel cutout
  • SPST momentary (500,000 life cycles)
  • IP67 sealed, die cast housing with nylon actuator
RP8500 Series Square Illuminated Panel Mount Pushbutton
RP8500 Series E-Switch Pushbutton Switch
  • 100mA 50VDC rating; 125mA 125VAC rating
  • 13.6mm diameter panel cutout
  • SPST momentary (500,000 life cycles)
  • IP67 sealed, nylon housing & actuator
RP8600 Series IP67 Sealed Pushbutton Switch
RP8600 Series E-Switch Pushbutton Switch
  • 0.4VA Max @ 20V Max (AC or DC) rating
  • 16mm diameter panel cutout
  • SPST momentary (100,000 life cycles)
  • IP67 sealed, nylon housing
SAV4 Series Anti-Vandal Switch
SAV4 Series E-Switch Pushbutton Switch
  • 19mm diameter panel cutout
  • Dot, ring, power, or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating
SAV7 Series Anti-Vandal Switch
SAV7 Series E-Switch Pushbutton Switch
  • 22mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating
SAV8 Series Anti-Vandal Switch
SAV8 Series E-Switch Pushbutton Switch
  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating
SV4 Series Anti-Vandal Switch
SV4 Series E-Switch Pushbutton Switch
  • Short body design
  • 19mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)
SV7 Series Anti-Vandal Switch
SV7 Series E-Switch Pushbutton Switch
  • Short body design
  • 22mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)
SV8 Series Anti-vandal Switch
SV8 Series E-Switch Pushbutton Switch
  • Short body design
  • 25mm diameter panel cutout
  • Multiple LED options
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)
TL2201 and TL4201 Series Sub-miniature Pushbuttons
TL2201 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • PC board mount design
  • Up to 4 poles momentary and maintained functions
TL2202 Series Pushbutton Switches
TL2202 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • PC board mount design
  • Up to 4 poles momentary and maintained functions
TL2203 Series Pushbutton Switches
TL2203 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • PC board mount design
  • Up to 4 poles momentary and maintained functions
TL2205 Series Illuminated Pushbutton Switches
TL2205 Series E-Switch Pushbutton Switch
  • 100mA 30VDC
  • Through hole mount design
  • Multiple LED illumination options
  • DPDT momentary and maintained functions
TL2230 Series Pushbutton Switches
TL2230 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • PC board mount design
  • 2 poles momentary and maintained functions
TL2285 Series Pushbutton Switches
TL2285 Series E-Switch Pushbutton Switch
  • 100mA 30VDC rating
  • PC board mount design
  • 2 poles momentary and maintained functions
ULP Series Illuminated Pushbutton
ULP Series E-Switch Pushbutton Switch
  • 500mA 25VDC rating
  • Panel or PC board mount design with several button options
  • Full LED illumination options
  • 1 or 2 poles momentary and maintained functions
ULV4 Series Anti-vandal Switch UL Listed
ULV4 Series E-Switch Pushbutton Switch
  • Dot, ring or power symbol illuminated
  • IP67 rated, UL certified
  • Long life; latching or momentary
  • Three wire lead options available:
    • 300mm long wire leads
    • Detachable socket with wire leads 500mm long
    • Molded Back with wire leads 500mm long
ULV7 Series Anti-vandal Switch UL certification and IP67 rated
ULV7 Series E-Switch Pushbutton Switch
  • Ring illuminated, 22mm panel cutout
  • IP67 rated, UL Certified
  • Long life; latching or momentary
  • SPDT or DPDT with multiple functions
  • Three wire lead options available:
    • 300m long wire leads
    • Detachable socket with wire leads 500mm long
    • Molded Back with wire leads 500mm long
ULV8 Series UL Certified Sealed Anti-vandal Switch
ULV8 Series E-Switch Pushbutton Switch
  • Ring illuminated, 25mm panel cutout
  • IP67 rated, UL Certified
  • Long life; latching or momentary
  • SPDT or DPDT with multiple functions
  • Three wire lead options available:
    • Wire Leads 300mm long
    • Detachable Socket with wire leads 500mm long
    • Molded Back with wire leads 500mm long
WBL Series Illuminated, Right Angle Pushbutton Switch
WBL Series E-Switch Pushbutton Switch
  • 300mA 30VDC
  • Right angle through hole mount design
  • Multiple LED colors, including bi-color LEDs
  • DPDT & 4PDT momentary and maintained functions
