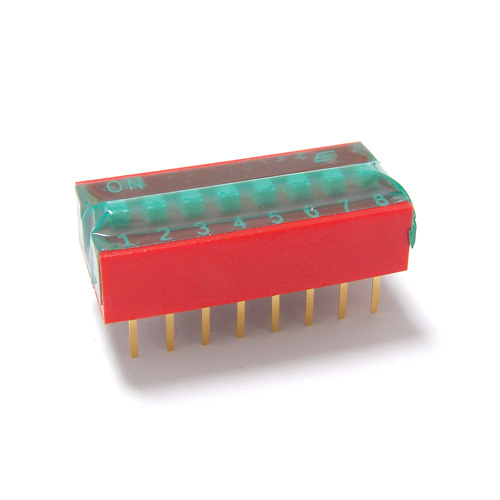

The KAS series slide DIP switches are available with PC pin or right angle PC pin termination. Available in up to 12 positions, these DIP switches come with tape seal options and are great for controller applications, along with telecommunications and test and instrumentation.



PLEASE NOTE: The right angle PC Pin termination option is not available with the recessed actuator. It is only available with the extended actuator.



Detail Specs

CONTACT RATING:	Switch: 25mA 24VDC Carry: 100mA 50VDC
OPERATING LIFE:	2,000 Make-and-Break Cycles, Each Circuit
CONTACT RESISTANCE:	Initial: 50mΩ Typical at 2-4VDC at 100mA After Life: 100mΩ Typical at 2-4VDC at 100mA
INSULATION RESISTANCE:	100MΩ Min. at 500VDC
OPERATING FORCE:	1000gf Max.
DIELECTRIC STRENGTH:	500V RMS Min. at Sea Level Between Adjacent Terminals
TRAVEL, ACTUATOR:	2.00mm Typical
TEMPERATURE RANGE:	Operating/Storage: -40°C to 85°C
VIBRATION:	To MIL-STD-202F, Method 201 A
SHOCK:	To MIL-STD-202F, Method 213B, Condition A
CAPACITANCE:	5pf Max. Between Adjacent Terminals
SWITCH FUNCTION:	SPST, 1 Thru 12 Positions (Except Position 11)
SOLDERING RECOMMENDATION	Wave: 500°F (260°C) for 5s Max. Hand: 30W Soldering Iron at 608°F (320°C) for 2s Typical Keep all switches in the "OFF" position during soldering and cleaning process.
