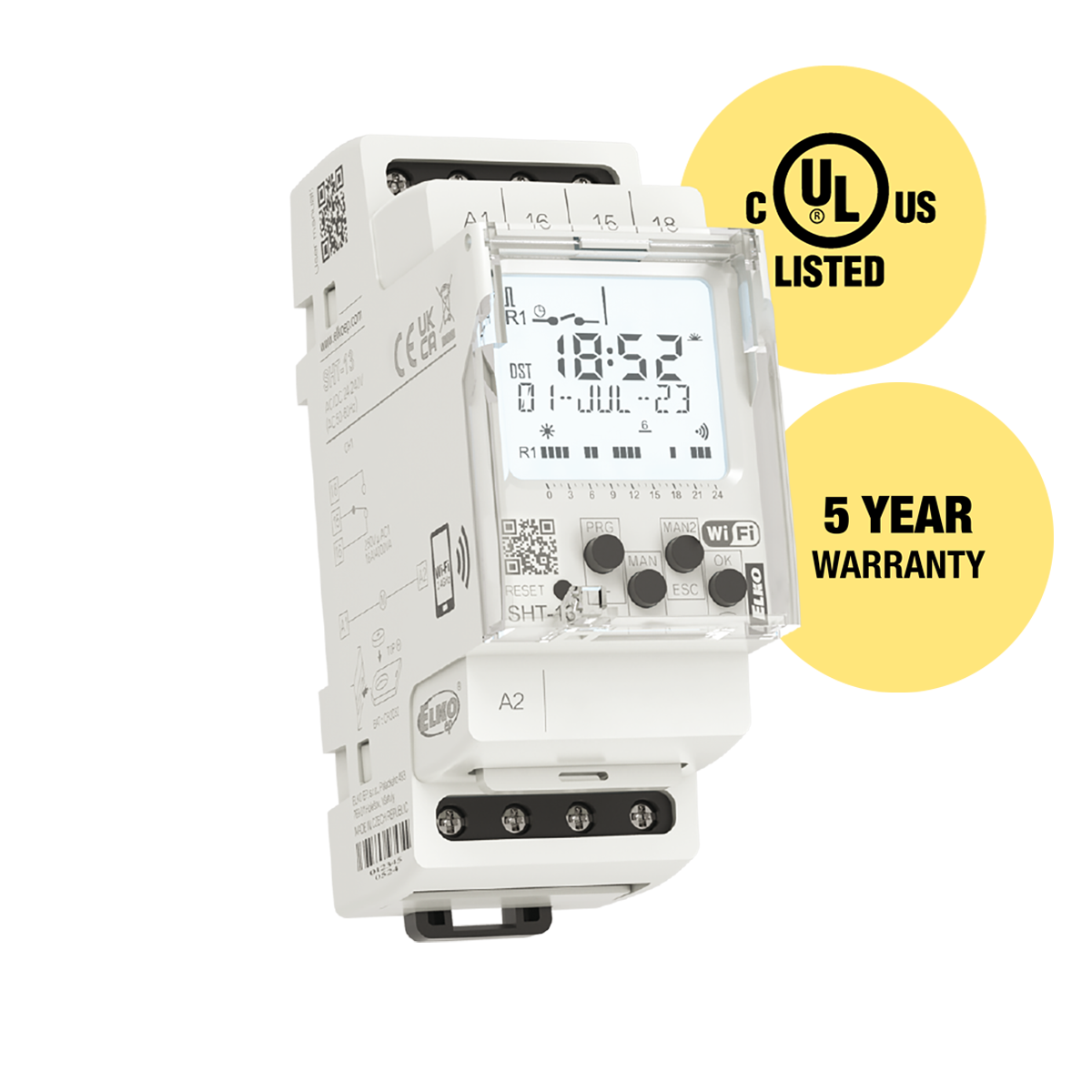

Relay Specialties, Inc. - Elko - Products - Wi-Fi Time Switches

All programs in one device (daily, weekly, yearly and astronomical).
UNIversal supply voltage in the range of AC/DC 24 – 240 V (AC 50-60 Hz).
Simple setting after the first start-up.
User-replaceable battery to back up the set time during power outages.
Built-in web server for setup and control via Wi-Fi connection.
Time synchronization through NTP server (require internet connection).
Possibility of permanent connection to the local network.
New well-arranged display with white backlight.
ASTROnomic program: manual entry of coordinates or selecting from one of more than 500 preset cities.
- selection of days of the week
- astro interrupt function (night break): controls the sunrise/sunset times and compares them with the set OFF/ON times
- high position accuracy thanks to two decimal places in latitude/longitude
One/two channel design (each with an operating hours counter).
Pulse/cycle output mode.
Transition of summer/winter time – AUTO or OFF.
Sealable transparent front panel cover.
PIN code protection against unauthorized changes.
Wireless firmware update – current version 1.40

Program	daily, weekly, yearly and astronomical
Replaceable battery	yes
Wireless communication	Wi-Fi (2.4 GHz)
Output	1x/2x changeover, 16 A
Housing	2-MODULE
aaSupply voltage (frequency)aa	AC/DC 24 – 240 V (AC 50-60 Hz)
Dimensions	90 × 35 × 64 mm
