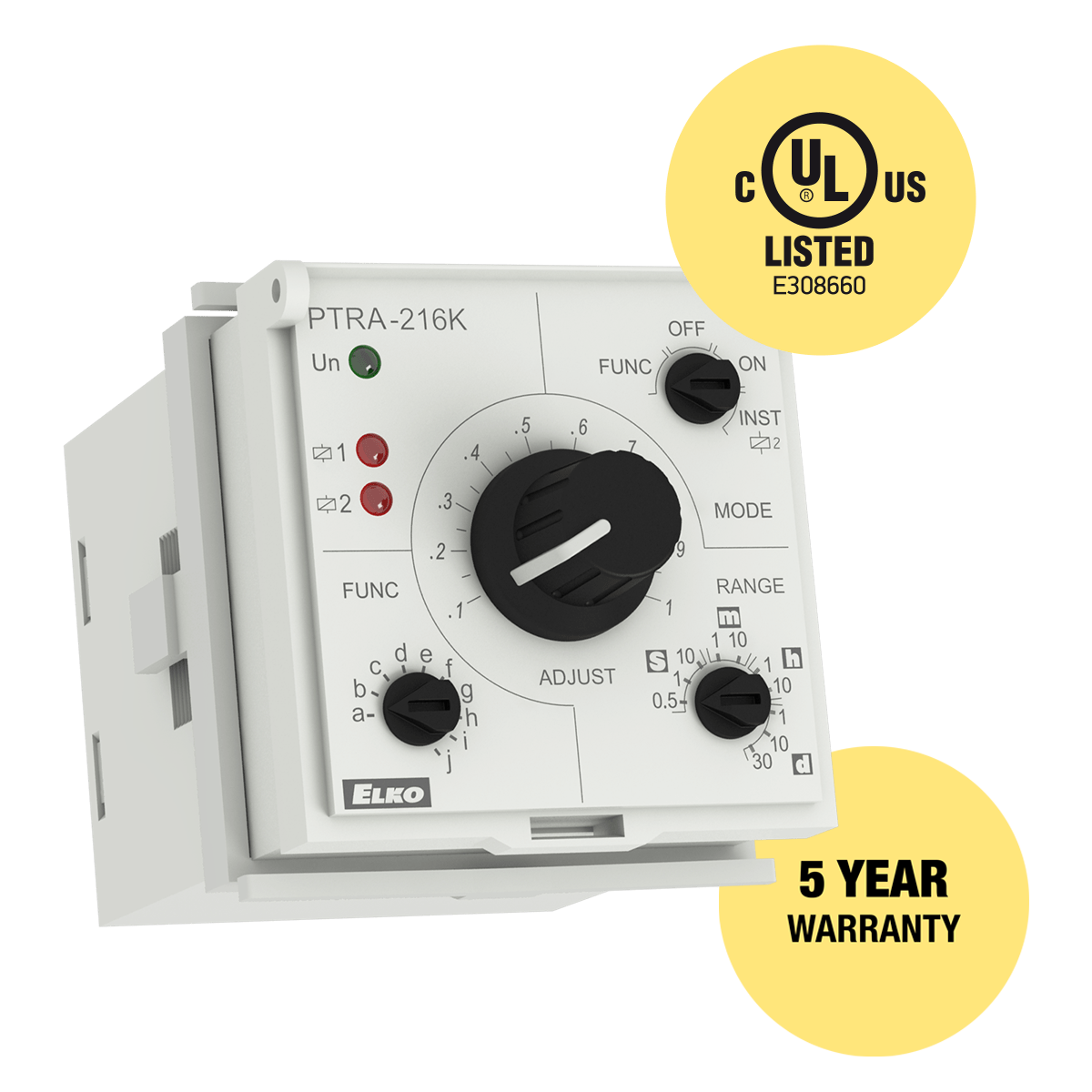

Multifunction time relay with three control inputs

11 pin octal socket, 10 functions, time range 0.05s - 30days, 2x16A changeover



Description



• Multifunction time relay for universal use in automation, control and regulation or in house installations.
• Three control inputs – START, INHIBIT, RESET.
• Possibility to select the control element for fi ne time setting: PTRA-216K – knob, for easy handling without the need for tools

Technical parameters

Voltage range	AC/DC 12 – 240V (AC 50 – 60Hz)
Maximum consumption	2.5 VA / 1.5 W
Output contact	2x changeover / SPDT 16 A (AgNi)
Functions available	10
Mounting	11 pin octal socket
LED indication	input – green, output – red
Protection degree	IP40 from front panel
Dimensions	48x 48 x 89 mm (1.7˝ x 1.7˝ x 3.5˝)
Weight	108 g (3.81 oz)

Documents and Downloads

Document	File Type	File Size	Download
PTRA-216T, PTRA-216K Series Datesheet	PDF	819 KB
