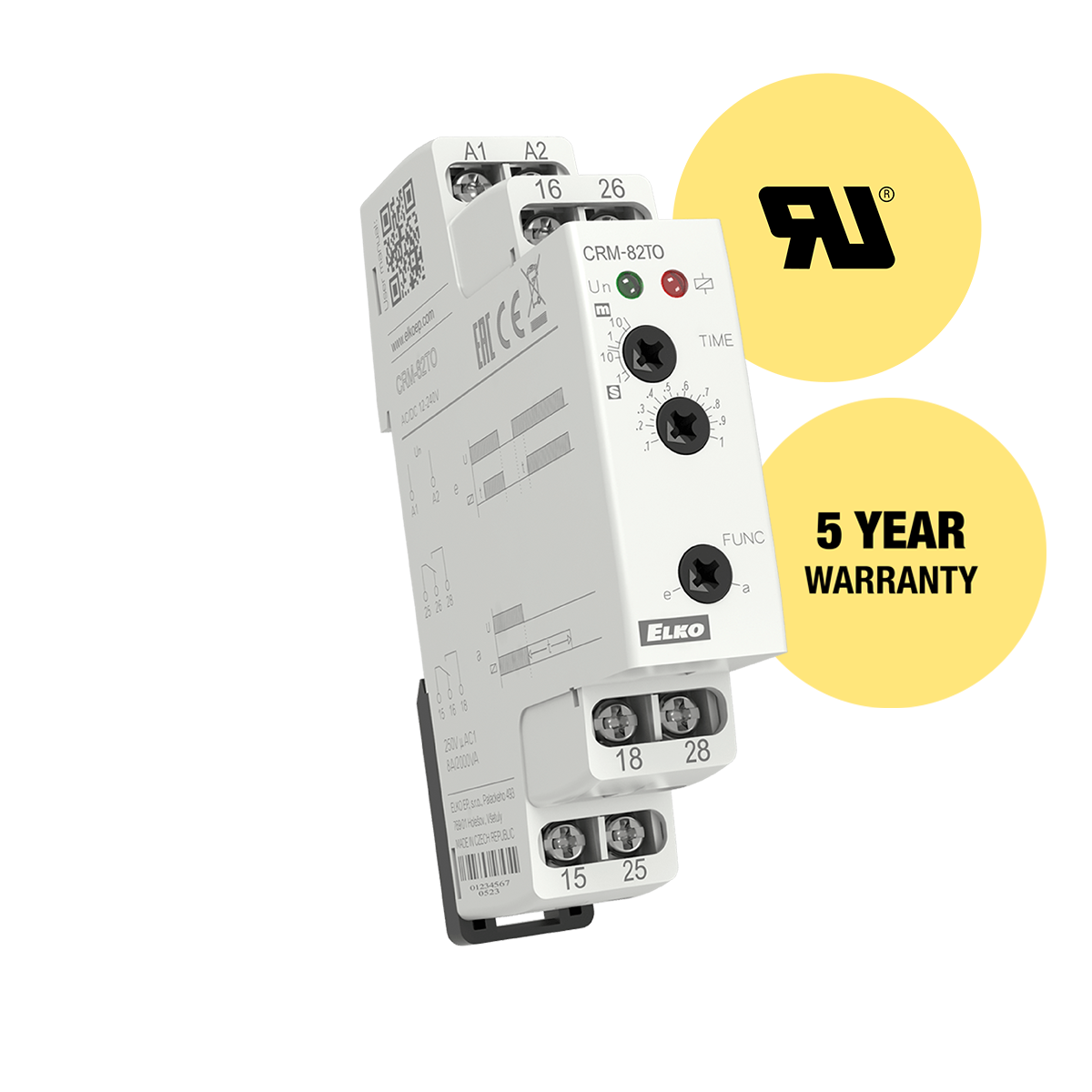

True off delay time relay

2 functions, time range 0.1s - 10min, 2x8A changeover



Description



• "True OFF“ relay – relay timing without supply voltage.
• Example of use: back-up source for Delay OFF in case of voltage failure (e.g. emergency lighting, emergency respirator, or protection of el. controlled doors – in case of fire).
• 2 time functions adjustable by rotary switch: a – Delayed return after disconnecting of supply / e – Delayed start.
• Time range (adjustable by rotary switch and fi ne setting by potentiometer): 0.1 s – 10 min.
• Interruptions in the power supply must take time steps (tens to hundreds of milliseconds).
• Output status indicated by red LED (only in case of supply voltage connection).

Technical parameters

Output	2x CO, 8 A
Housing	1-MODULE
Supply voltage (frequency)	AC/DC 12-240 V (AC 50/60 Hz)
Time range	0.1s – 10 min (4 ranges)
Number of functions	2
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
