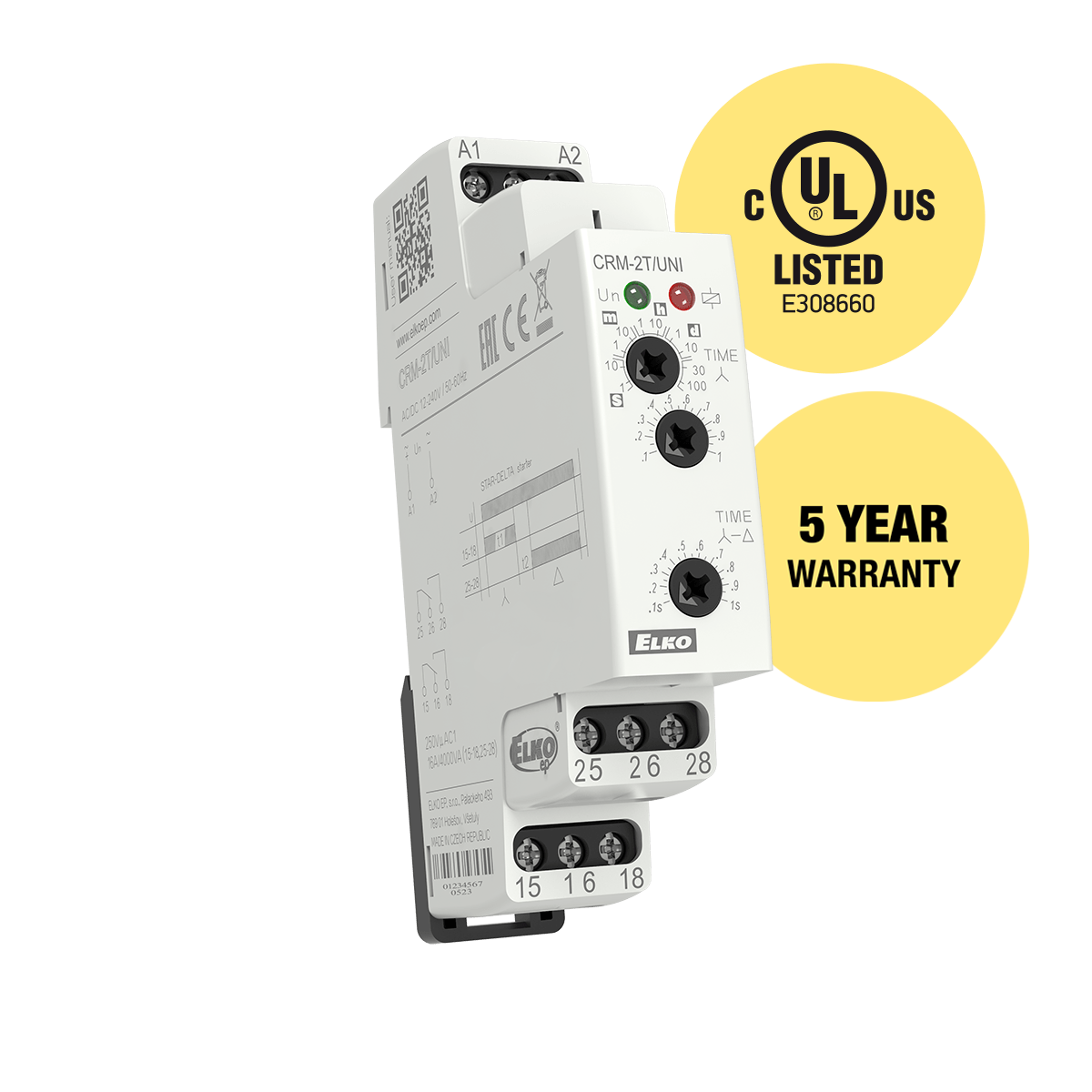

Star / Delta time relay

1 function, time range t1: 0.1s - 100days, t2: 0.1-1s, 2x16A changeover



Description



• It serves for delay ON of motors star/delta.
• Time t1 (star):
  • time range setting by rotary switch
  • fine time setting by potentiometer
• Time t2 (delay) between star / delta
  • fine time setting by potentiometer
• Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

Output	2x CO, 16 A
Housing	1-MODULE
Supply voltage (frequency)	C/DC 12-240 V or AC 230 V or AC 24-480 V
Time range	t1: 0.1s – 100 days, t2: 0.1s – 1s
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Documents and Downloads

Document	File Type	File Size	Download
CRM-2T Series Datesheet	PDF	819 KB
