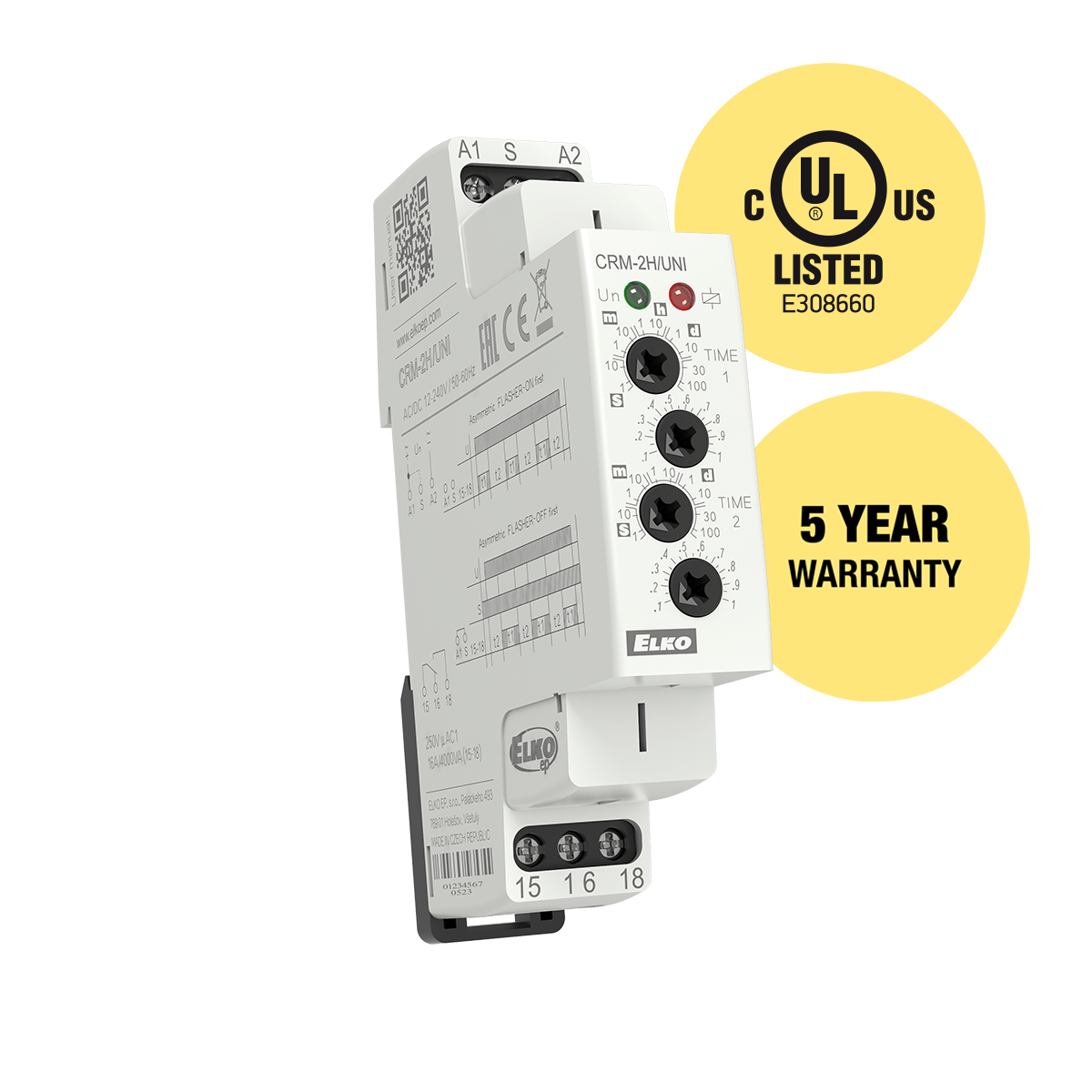

Asymmetric flasher

2 functions, time range 0.1s - 100days, 1x16A changeover



Description



• Flasher with independent adjustable switch ON and switch OFF.
• Used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, illuminated advertising, etc.
• 2 time functions:
  • 1) Asymmetric FLASHER – ON first
  • 2) Asymmetric FLASHER – OFF first
• Function choice is done by an external jumper of terminals S-A1.
• Time scale 0.1 s – 100 days divided into 10 time ranges.
• Time range setting via rotary switch.
• Fine time setting by potentiometer.
• Multifunction red LED fl ashes or shines depending on the operating status.

Technical parameters

Output	1x CO, 16 A
Housing	1-MODULE
Supply voltage (frequency)	AC/DC 12-240 V or AC 230 V (AC 50-60 Hz)
Time range	0.1s – 100 days (10 ranges)
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
