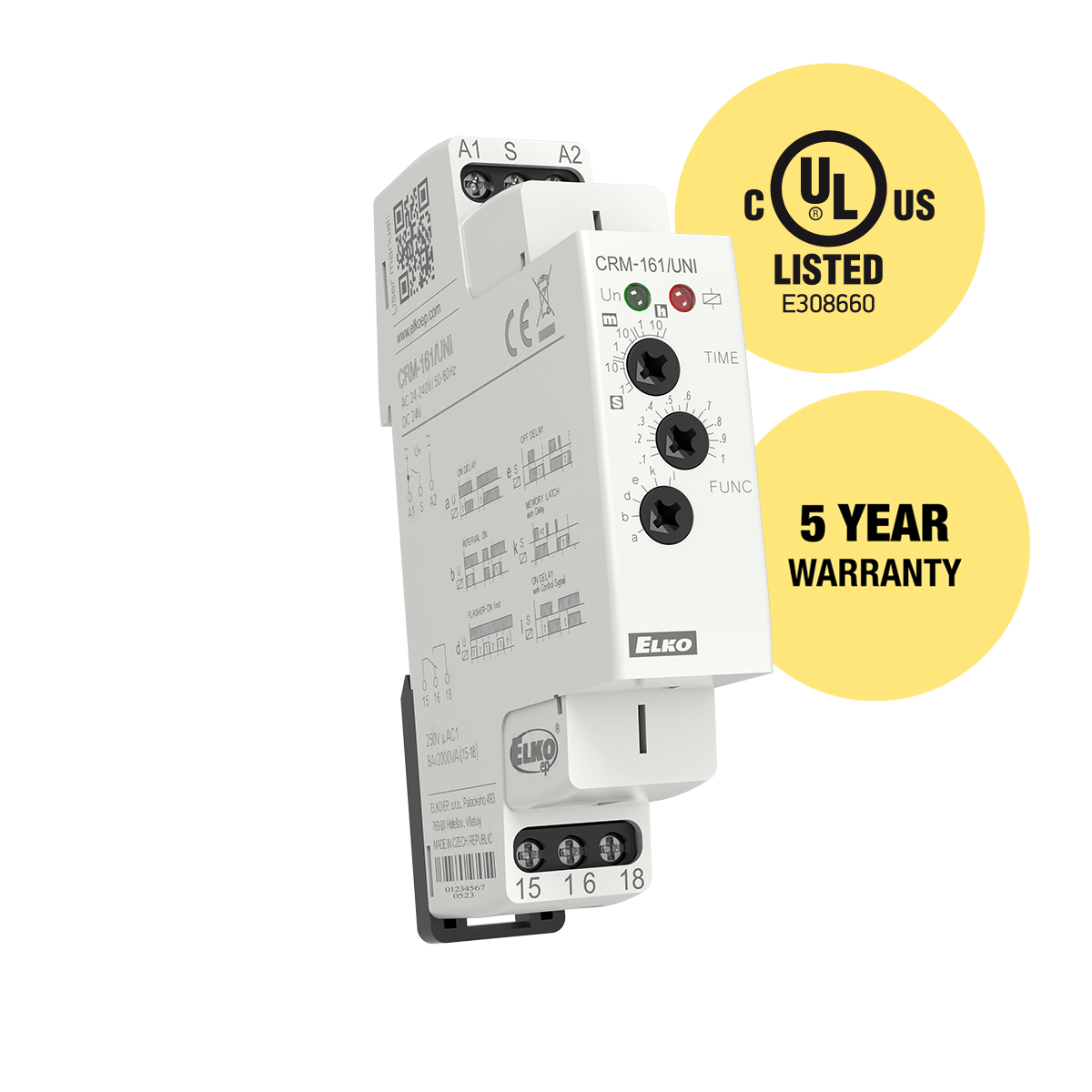

Multifunction time relay - economy version

6 functions, time range 0.1s - 10h, 1x8A changeover



Description



• Multifunction economy version of time relay for universal use in automation, control and regulation or in house installations.
• Universal supply voltage: AC 24 – 240 V (AC 50/60 Hz) and DC 24V.
• Comfortable and well-arranged function and time-range setting by rotary switches.
• Time scale 0.1 s – 10 hrs divided into 6 ranges: (0.1 s – 1 s/1 s – 10 s/0.1 min – 1 min/1 min – 10 min/0.1 hrs – 1 h/1 h – 10 hrs).
• Output contact: 1x changeover/SPDT 8 A.
• Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

Output	1x CO, 8 A
Housing	1-MODULE
Supply voltage (frequency)	AC 24-240 V and DC 24 V (AC 50/60Hz)
Time range	0.1 s – 10 hrs (6 ranges)
Number of functions	6
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Documents and Downloads

Document	File Type	File Size	Download
CRM-161 Series Datesheet	PDF	819 KB
