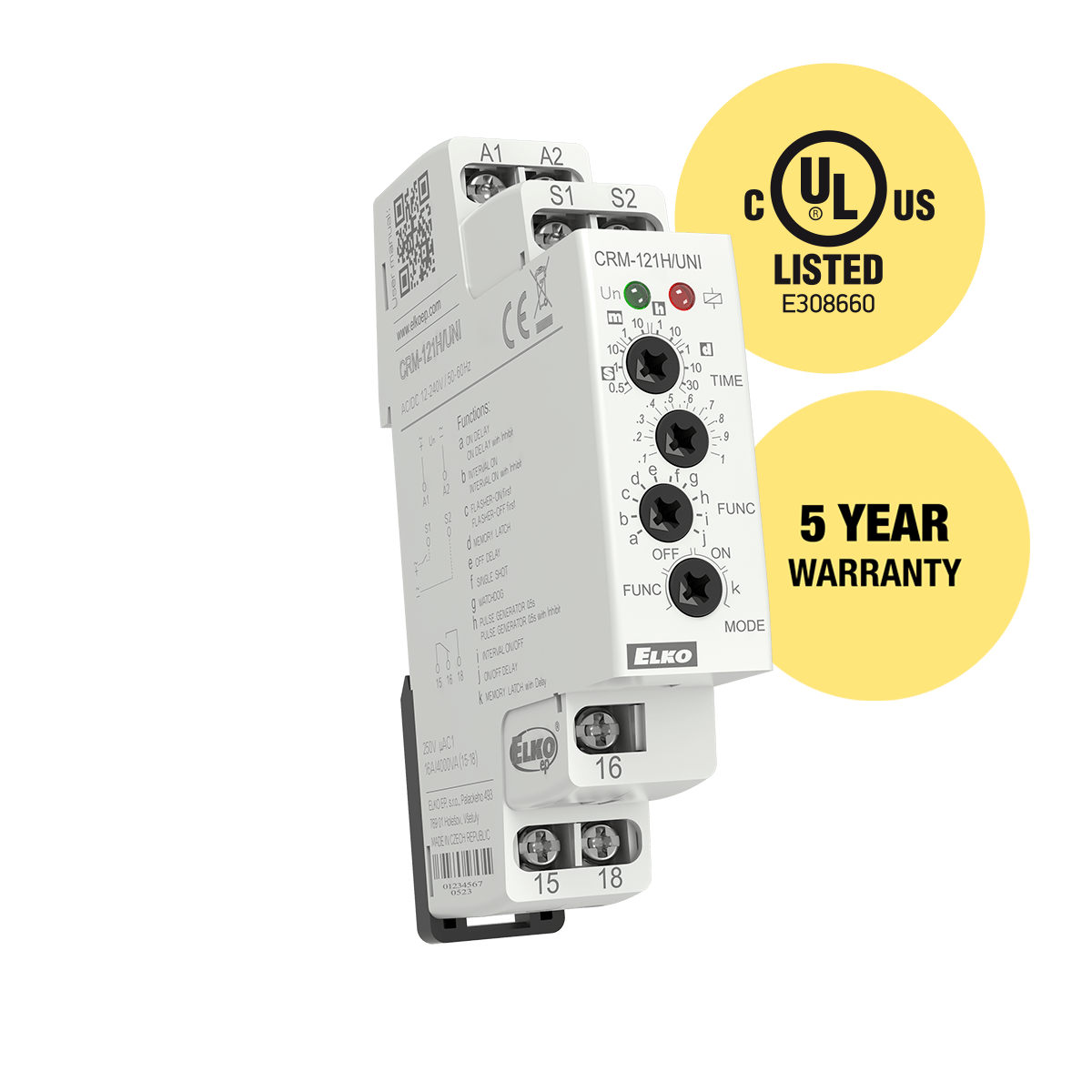

Multifunction time relay with galvanically separated control

11 functions, time range 50ms - 30days, 1x16A changeover



Description



• Multifunction time relay for universal use in automation, control and regulation or in house installations.
• Galvanically separated control input (Power Trigger)
• All functions initiated by the supply voltage, except for the flasher function, can use the control input to inhibit the delay (pause).
• Mode selection – according to the set function, permanently closed, permanently open, function of MEMORY LATCH with delay.
• Time scale 50 ms – 30 days divided into 10 ranges.
• Multifunction red LED fl ashes or shines depending on the operating status.

Technical parameters

Output	1x CO, 16 A
Housing	1-MODULE
Supply voltage (frequency)	AC/DC 12-240 V AC 50/60 Hz)
Time range	50 ms – 30 days (10 ranges)
Number of functions	11
Dimensions	90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Documents and Downloads

Document	File Type	File Size	Download
CRM-121H Series Datesheet	PDF	819 KB
