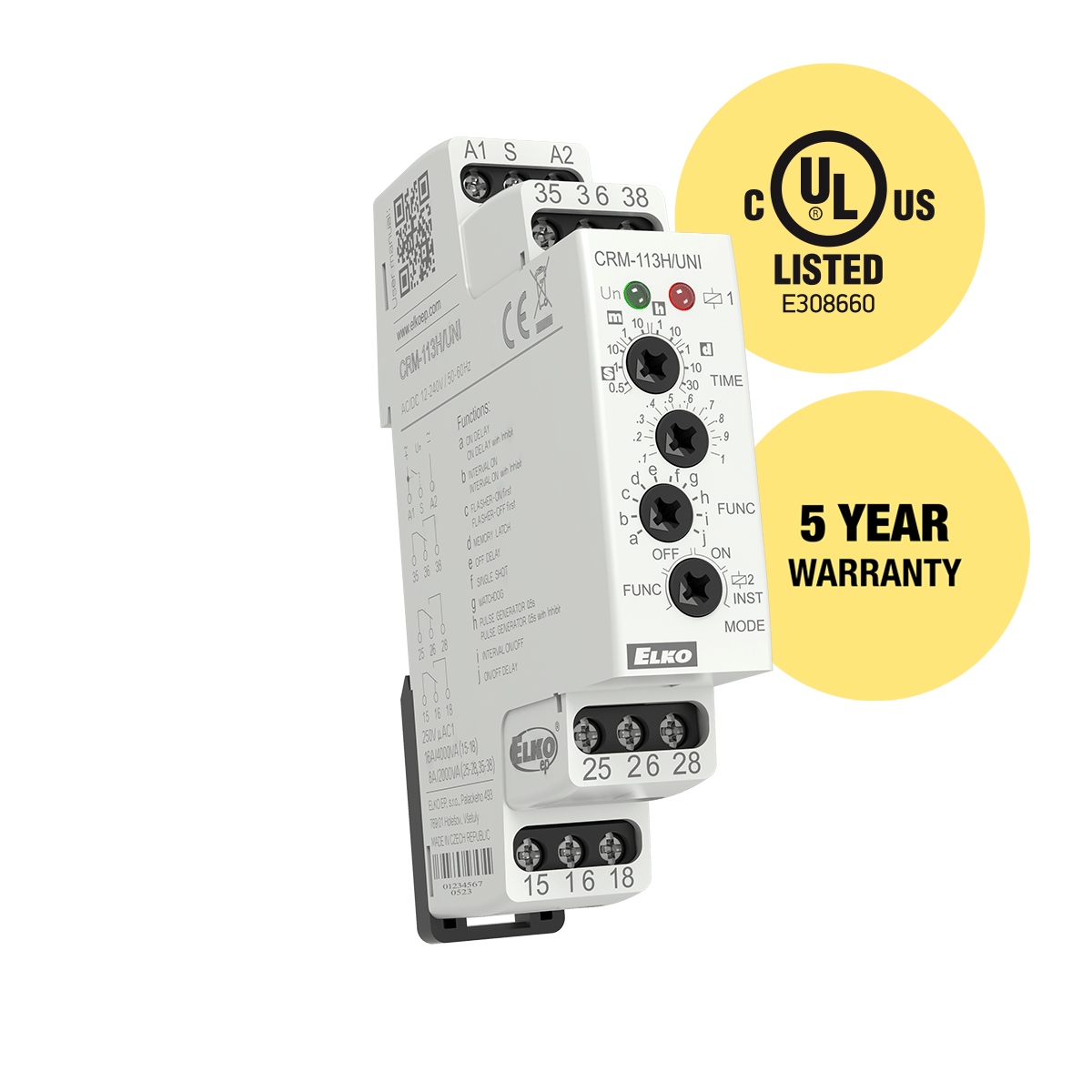

Multifunction time relay with inhibit delay

10 functions, time range 50ms - 30days, 1x16A + 2x8A changeover



Description



• Multifunction time relay for universal use in automation, control and regulation or in house installations.
• All functions initiated by the supply voltage, except for the fl asher function, can use the control input to inhibit the delay (pause).
• Mode selection – according to the set function, permanently closed, permanently open, switching of the second output contact according to supply voltage
• Multifunction red LED flashes or shines depending on the operating status.

Technical parameters

Output	1x CO 16 A, 2x CO 8 A
Housing	1-MODULE
Supply voltage (frequency)	AC/DC 12-240 V (AC 50/60 Hz)
Time range	50 ms – 30 days (10 ranges)
Number of functions	10
90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)	Dimensions

Documents and Downloads

Document	File Type	File Size	Download
CRM-111H, CRM-113H Series Datesheet	PDF	819 KB
