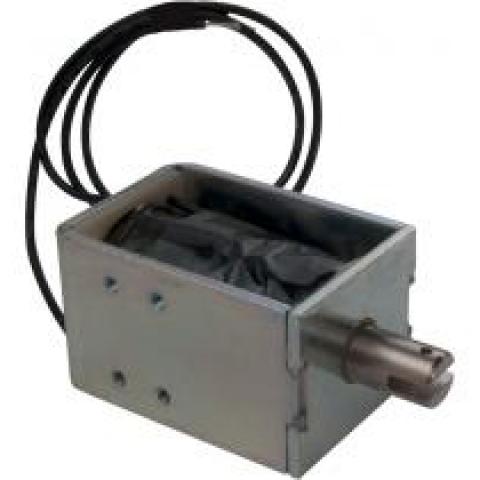

Coil Voltages: 6, 12, 24, 110 VDC (Other voltages available upon request)
Power: 13 Watts continuous, 48 Watts intermittent, 130 Watts pulse
Coil Termination: Wire leads standard
Insulation Class: Class A Rating – 105ºC (221ºF) standard | 130ºC (266ºF) optional
Dielectric Strength: 30 volts and under, 500 VRMS | Over 30 volts, 1000 VRMS plus 2X rated voltage for 1 minute
Size (l,w,h): 2.625 x 1.562 x 1.828” [66.7 x 39.7 x 46.4]
Plunger Diameter: Ø0.50" [Ø12.7]
Plunger Guide Material: Plastic
Mounting: 6x #8-32 UNC-2B tapped holes
Life Expectancy: 250,000 cycles – dependent on application conditions
