Control Relay

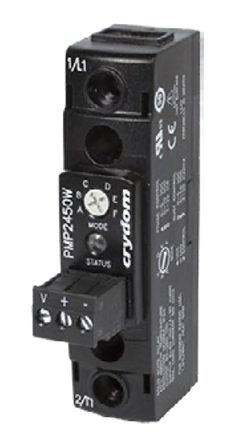

PMP Series are fully configurable Panel Mount proportional control relays with micro controller based technology designed to provide control of the power delivered to single-phase loads of up to 90 Amps at 90 to 600 VAC.
PMP Series SSRs vary the output power in proportion to an analog control input, which can be one of 3 signal types: 0-5 VDC, 0-10 VDC or 4-20 mA. The output can be controlled by 2 different methods, selectable on the unit: Phase Angle Control, and Burst Fire Control (with Distributive Zero Cross).
PMP Series proportional controllers are ideal for a wide range of applications that require control of the load power, such as for example lamp dimming and resistive heating control.
Main features of the PMP Series include:
