No heat sink calculations required!
Designed for superior thermal performance in harsh industrial environments, Crouzet's new CoolTech series is the most advanced DIN rail solid-state relay in its range on the market today. Based on GN SSR technology, the CoolTech solid-state relays have a combination of features not found in equivalent competitor's products.
Epoxy-Free Design
The epoxy-free design of the CoolTech SSR eliminates the stress placed on internal components due to the expansion and contraction of epoxy during normal use. Moreover, this eliminates the possibility of a catastrophic failure as a result of severe stress in the encapsulant during load failure.

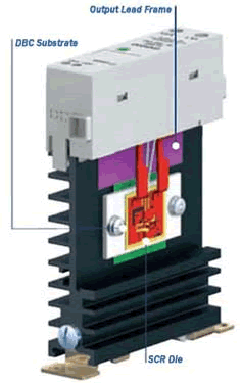

Direct-Bond Copper Substrate
The DBC substrate, along with the unique vertical placement of the substrate, allows the SCR die to efficiently transfer heat to the heat sink and into ambient air. As a result, the SCR die operate at a lower temperature than competitive relays, which accounts for the CoolTech's higher I2T and surge-current ratings.
Internal Transient Protection
Each CoolTech Solid State Relay is equipped with internal transient protection, which eliminates the need for adding additional MOV's or other transient suppressors. Moreover, unlike MOV's or other external devices, the transient protectcion in the CoolTech is designed to be fully repeatable. This is accomplished by allowing the output of the solid-state relay to conduct load-current when a transient is detected across the output terminals, rather than forcing load-current through the protection circuit. Since the solid-state relay is specified within the application to carry full load-current continuously, there is no degradation of protection.
EMC Compliance
Compliance with level 3 requirements of the EMC Directive enhances the CoolTech's ability to operate safely and reliably in harsh electrical environments by providing additional protection from; surge currents, electrostatic discharge, electrical transients, and conducted/radiated emissions
Additional features and benefits include:
- Ratings up-to 30A (22.5mm), 45A (45mm), or 25A Three-Phase
- LED Input Status Indicator
- Relay or Contactor Terminal Configuration
- IP20 Touch-Safe Housing
- 100k UL508 Endurance Rating
- DIN Rail or Panel Mount Back Plate
- UL/CSA/TuV Approved, CE Compliant
- RoHS Compliant in January 2006
The new CoolTech solid-state relays are ideal for use in numerous commercial & industrial applications, including: mercury relay replacement, professional food-service equipment (ovens, fryers, dispensing equipment, conveyors, etc.), sterilizers, temperature control systems, plastic extrusion / thermoforming machinery, HVAC&R, kilns, packaging equipment, sorting equipment, wave solder & reflow systems, lighting systems, pump controls, incubators, motor-switching, UPS systems, and much more.
