Ideally suited to the needs of Automated Test Equipment and RF requirements. The specification tables allow you to select the appropriate relay for your particular application



Features

• Very small footprint (0.17 in²), high reliability reed relays
• High Insulation Resistance - 10¹² Ω available with model 2204
• High speed switching compared to electromechanical relays
• Hermetically sealed contacts for long life
• Epoxy coated steel shell provides magnetic shielding
• Optional Electrostatic Shield for reducing capacitive coupling
• Optional Coaxial Shield for 50Ω impedance and switching of fast rise time digital pulses offered on Form A
• Relay models 2200-2301, 2200-2302 are ATE industry standards
• Specifically engineered for OEM designs and maintenance of existing production fixtures
• RoHS compliant

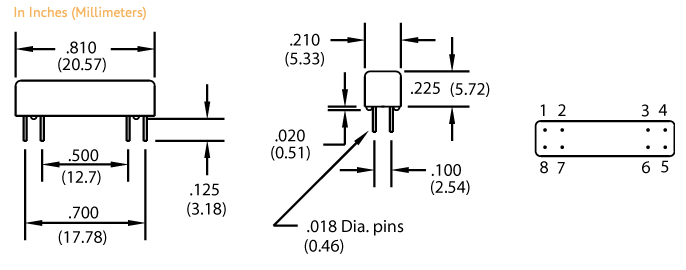

Series Dimension

Model Information

Documents and Downloads

Document	File Type	File Size	Download
2200 Series Datasheet	PDF	501 KB
