CONTA-CLIP is excellently positioned across all connection technologies and is one of the leading technical suppliers in many areas. Whether screw connection system, push-in connection system, tension spring connection system or bolt connection system - the portfolio is absolutely marketable.

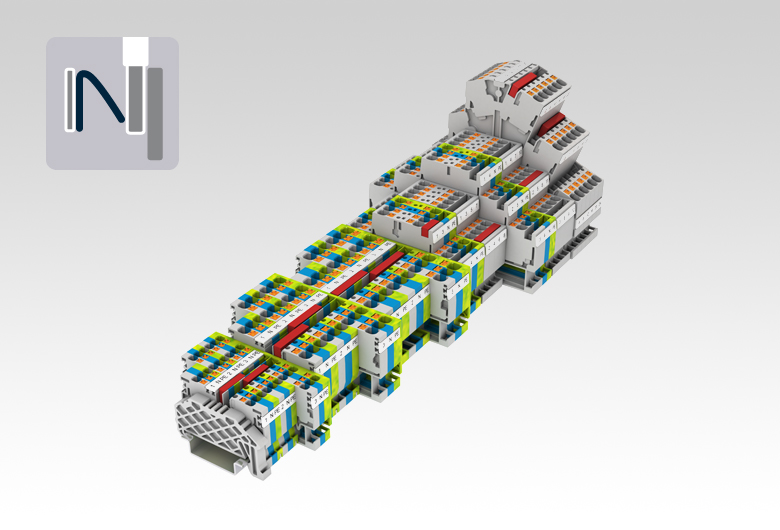

Our wide range of innovative PRK and FRK terminal blocks with the Push-in connection system include feed-through terminals, PE terminals, disconnect terminals, fused terminals, multi-level terminals, installation terminals and initiator terminals, for conductor cross-sections from 0.2 mm2 to 25 mm2.

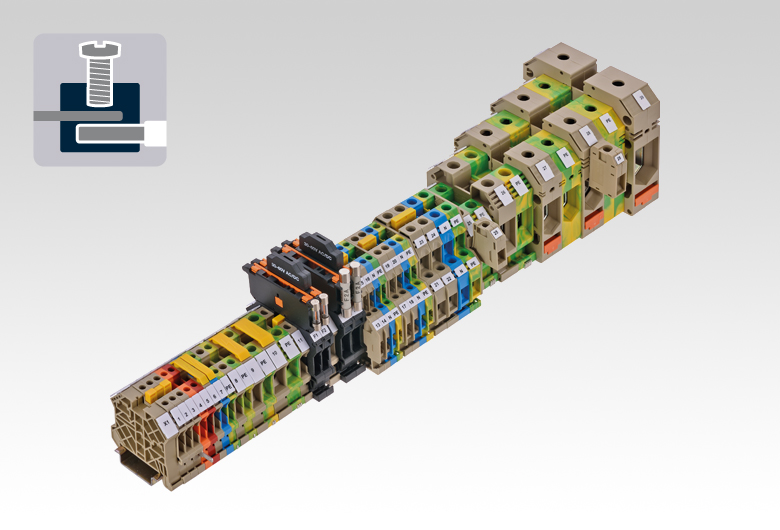

Everything for classic wiring with screw connection systems (also for high currents): SRK feed-through and PE terminals, RK high-temperature variants, TK transformer terminals, HSK high-power stud terminals, SVB series screw distributor blocks, and the modular feed-through terminal systems from the SDK series.

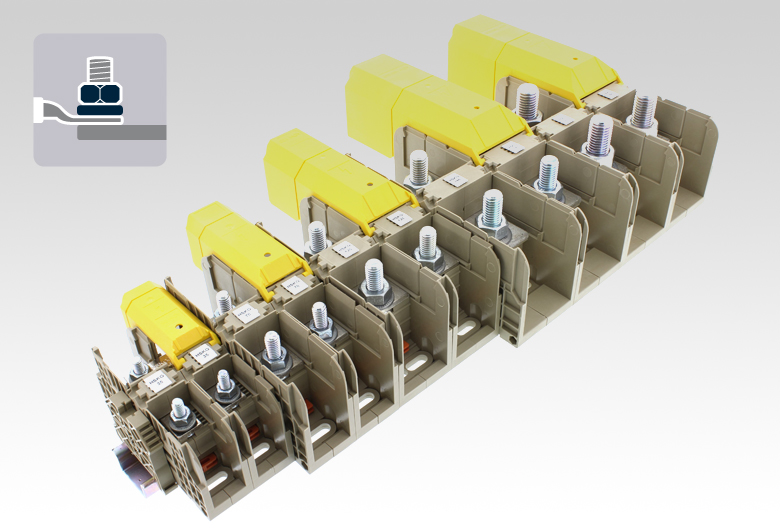

The newest generation of stud terminals from CONTA-CLIP offers secure connections for all energy-transmitting applications. Depending on the wire cross-section, the HSKG stud terminals can be used with M6, M8, M10, M12 and M16 threaded studs. The rated current is from 125 A to 520 A with a rated voltage of 1000 V. The wire connection range is from 2.5 mm2 to 300 mm2.

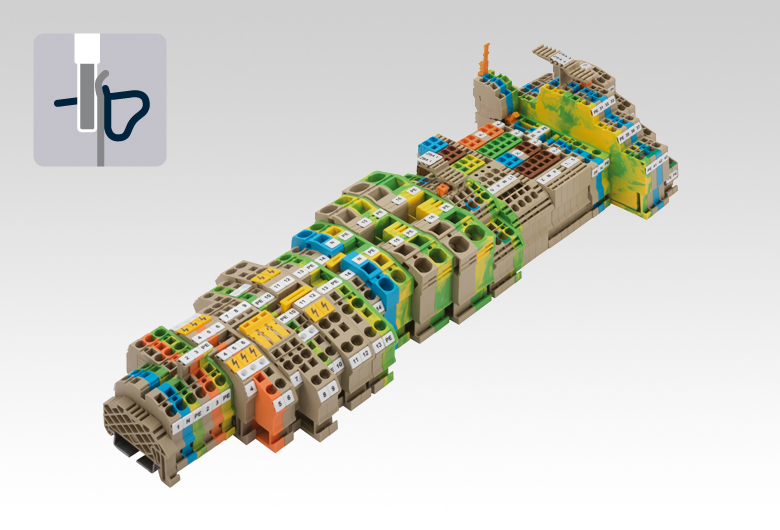

Our versatile line of terminals with tension spring connections for conductor cross-sections from 0.2 mm2 to 16 mm2 includes: the ZRK/ZSL series of feedthrough and PE terminals, the double-level ZRKD/ZSLD, the ZIKD three-level terminal blocks, motor-connection terminals, (blade-) disconnect terminals, fused terminals, direct-mount terminals, and initiator/actuator terminals for transmitting positioning, encoder and alert signals.
