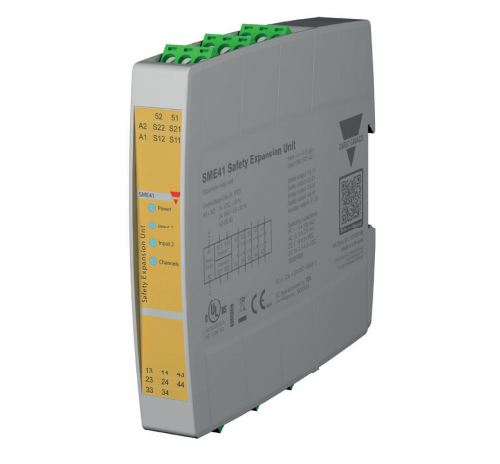

Carlo Gavazzi - Safety Module - SME41 Series

The SME41 safety expansion unit is designed in Category 4, Performance Level e in accordance with the Machine Directive EN ISO 13849-1 to operate as relay expansion unit controlled by a master safety module, with 4 additional safety relay outputs.

The SME41 can operate as relay expansion unit with master modules with safety relay or OSSD outputs.

Features

Expansion relay unit. The SME41 module can be used in combination with a master safety module to extend the number of safety relay outputs

Safety outputs. Electromechanical forcibly guided safety relays with 4NO+1NC aux outputs

Multiple safety input types. The input signal can be connected to master safety module with relay outputs or OSSD outputs

Machinery Directive compliance. Cat. 4, PL e in accordance with EN ISO 13849-1

Flexible wiring. The module is equipped with detachable screw terminals for easy wiring and product maintenance; the terminal blocks are coded so to avoid wiring mistakes

Diagnostic. LED indications for power supply, state of the safety inputs and state of the safety outputs

Compact. 1-DIN, W x H x D: 17,5 x 110,8 x 121,1mm

Approval by TÜV. CE, cULus

Documents and Downloads

Document	File Type	File Size	Download
SME41 Series Datasheet	PDF	1.2 MB
