Features

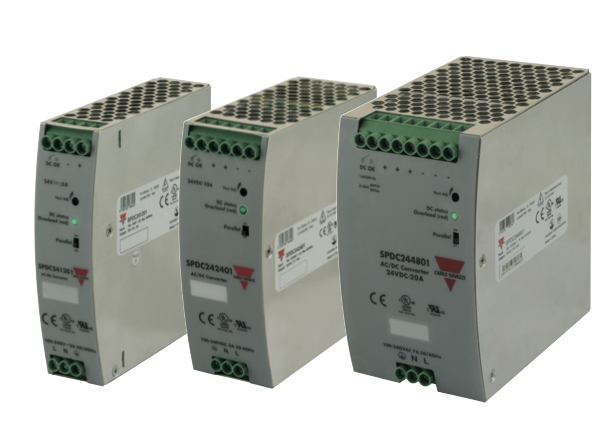

Reliable power in very compact dimensions. This SPDC has an ultra-slim DIN rail body, with up to 480W in only 70mm width of space
Built-in active PFC. The power factor correction (PFC) circuit adjusts the power factor to 0.99@110Vac and 0.95@230Vac.
Parallel function. The SPDC can easily be connected in parrallel to provide for increased power or used in redundancy operations.
150% Power Boost. The SPDC can provide 150% of the rated output power for up to 3 seconds, providing the extra power needed during critical startups.
Universal AC, DC input range. SPDC Series can be powered with AC Voltage (85VAC to 264VAC) or with DC Voltage (130VDC to 350VDC).
Reliable critical protection. Safety and reliability is guaranteed by the various output protections: Over Voltage (OVP), Over Load (OLP), Short Circuit (SCP) and Over Temperature (OTP).
High efficiency and wide operating ambient temperature. The SPDC has a very high efficiency of up to 93.8%. The operating temperature range is, from -25°C to +60°C (without derating), and up to 70°C with -25% derating.
Ease of installation. The SPDC can be installed in 5 different orientations, enabling the unit to fit easily into installation with limited space.

Documents and Downloads

Document File Type File Size Download
SPDC Series Datasheet PDF 3.8 MB
