Features

LED display, selectable colour (red, amber, green)
The alarm status can be coupled to the different colour of the display
Linearization of V, A and Hz inputs up to 16 points

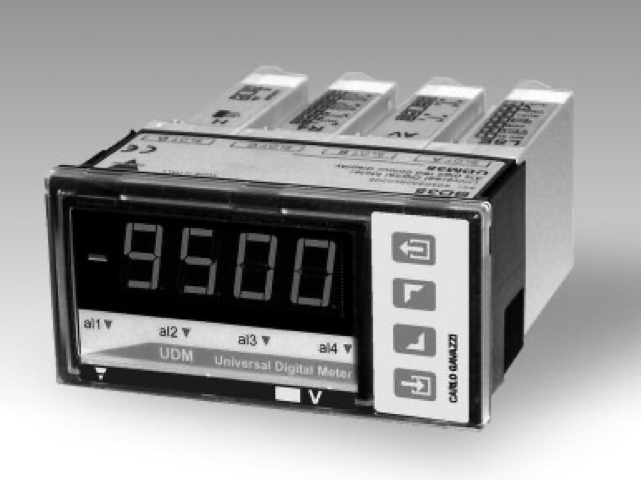

Multi-input modular instrument 4-DGT LED
0.1% RDG basic accuracy
TRMS AC current and voltage measurements
AC/DC current measurements; selectable full scales (200μA to 5A)
AC/DC voltage measurements; selectable full scales (200mV to 500V)
°C or °F temperature measurements (Pt100-250-500-1000, Ni100, TC J-K-S-T-E)
Resistance measurements; selectable full scales (20Ω to 20kΩ)
Dual rate, speed, frequency and period measurement (0.001Hz to 50kHz)
Up to 4 independent alarm set-points (optional)
20mA/10VDC analog output (optional)
Serial port RS485 or RS232 (optional)
MODBUS, JBUS communication protocol
Front protection degree: IP67, NEMA12, NEMA4x "Indoor use only"

Documents and Downloads

Document File Type File Size Download
Type UDM40 Datasheet PDF 919 KB
