Relocating a rocker switch in a typical switch panel is usually not an easy move, the end result often being a complicated harness redesign and some hefty added cost. At Carling, we've made the move a lot simpler, faster and much more affordable. Introducing our N-Series Addressable Rocker Switches. The N-Series offers the look and feel of a traditional electro-mechanical switch combined with a built in PCB - providing you with a flexible, cost-effective alternative to a CAN/LIN based switch.



The N-Series produces up to 144 individual switch IDs by using a resistive ladder circuit, allowing for quick changes of resistor values to individual loads. So switch to the N-Series by Carling.



FEATURES:



  • A flexible, cost effective alternative to a CAN/LIN based switch, with the look and feel of a traditional Electro-mechanical control coupled with a built in PCB.
  • Wiring harness simplification, allowing specific loads to be controlled from any location within a vehicle cab.
  • Produce up to 144 individual switch IDs by using a resistive ladder circuit. Different switch IDs are achieved by changing the resistor values tied to individual loads. Each load can then be assigned to the specific functions that the switch is controlling. Each switch is connected to an ECU and the application software is written to recognize the switch IDs to determine which load is being controlled as well as the selected actuator position.

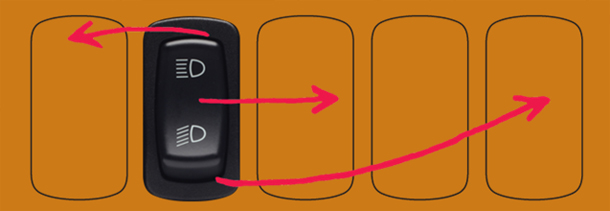

  • Rearrange switch locations without the need for costly and time consuming harness redesign, giving designers the ultimate in flexibility.



Documents and Downloads

Document File Type File Size Download
N-Series Addressable Rocker Switches PDF 624 KB
