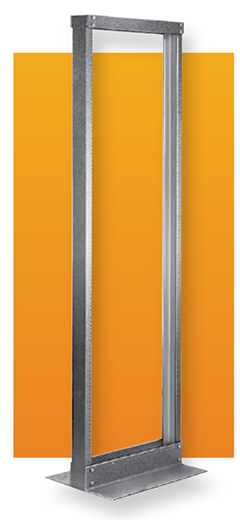

These heavy duty racks are available in 6’ and 7’ heights and 19 ̋ wide panel space. Panel mounting holes are #12-24 tapped on EIA universal spacing. (Use #9260 screws – order separately.) Panel mounting holes are located on front flanges only.



DESIGN FEATURES

• Base Angles: .25 ̋ × 3.50 ̋ × 4.87 ̋
• Top Angles: .12 ̋ × 2.09 ̋ × 1.56 ̋
• Uprights: .18 ̋ × 3.00 ̋ × 1.28 ̋
• Overall Width: 20.37 ̋
• Overall Depth: 12.75 ̋ base, 3.00 ̋ upright, 6.12 ̋ top
• Racks are shipped knocked down in two (2) cartons, with all necessary assembly hardware included.



FINISH

• Black Texture (BT)
