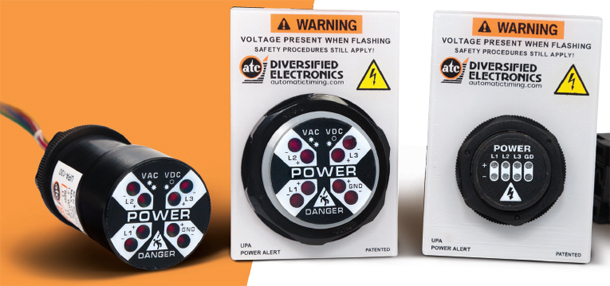

The UPA-200 Power Alert reduces the risk of electrical arc flash by pre-verifying the electrical isolation from outside of an electrical panel. Hard wired to the circuit breaker or main disconnect, the UPA LED's flash to indicate the presence of hazardous conditions (20-600 VAC & 20-1000 VDC) associated with stored energy. Engineered with redundant circuitry, the power alert is powered by the same voltage that it indicates. The unit is easily installed into the panels through a standard push-button 30mm knockouts.



The UPA-200 is ideal for mounting on the front controller door panel. The use of fiber-optics on this unit to transmit the LED lights to the enclosure door allows the unit to be mounted on an ungrounded door panel due to no voltage present on panel.



Operations: The eight detector UPA-200 visually alerts to the presence of dangerous AC or DC (Stored Energy) potentials occuring between any combination of the four minitored input lines (L1, L2, L3, GND). Two LED indicators are assigned to each input line are designate "+" and "–". For each input line carrying an AC potential (bi-polar), both the "+" and "–" LEDs will be active. A DC or Stored Energy potential will illuminate the "+" LED for the positive line and the "–" LED for the negative line.



Features:



  • Ideal for use in Lockout/Tagout Procedure
  • Enhances NFPA 70E & OSHA Compliance
  • Reduces Arc Flash & Electrocution Risk
  • Detects Stored Energy
  • Detects Ground Fault Problems
  • No Voltage Present on Enclosure Door Panels
  • DIN Rail or Surface Mounted Base
