| Image | Series | CONTACT ARRANGEMENT | COIL VOLTAGE | TERMINAL TYPE | ISOLATION | BREAKDOWN VOLTAGE (INITIAL) : BETWEEN CONTACT AND COIL | AMBIENT TEMPERATURE |
 |

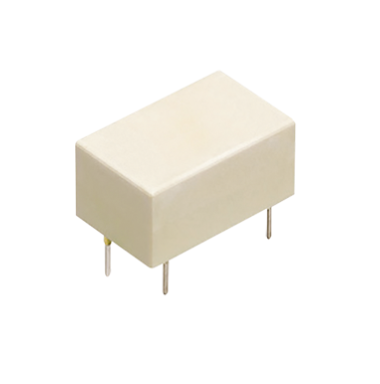

RS Series Relays | 1c | 3V DC to 24V DC | SMD,THD | Min. 60dB/900MHz, Min. 30dB/3GHz, Min. 55dB/900MHz, Min. 30dB/3GHz, Min. 60dB/900MHz, Min. 35dB/3GHz | 1000Vrms | -40°C to +70°C, -40°C to +60°C |
 |

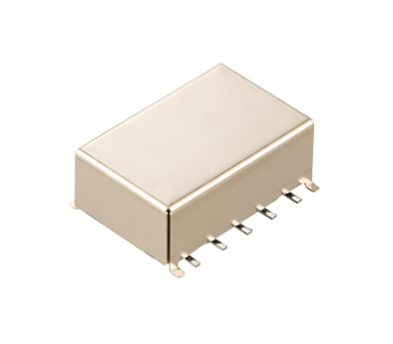

RA Series Relays | 2c | 1.5V DC to 48V DC | SMD | Between open contacts: Min. 20dB Between contact sets: Min. 30dB |
1000Vrms | -40°C to +85°C |
 |

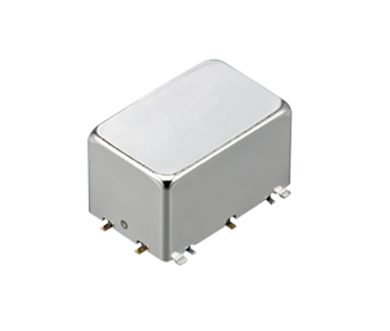

RJ Series Relays | 2c | 3V DC to 24V DC | SMD,THD | Between open contacts: Min. 35dB Between contact sets: Min. 30dB |
500Vrms | -30°C to +70°C |
 |

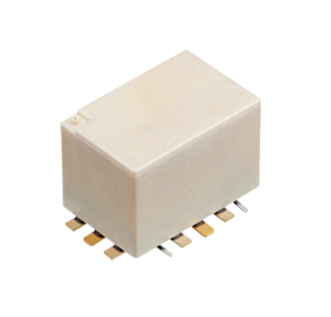

RN Series Relay | 1c | 12V DC, 24V DC, 4.5V DC | SMD | Min. 60dB以下 (to 1GHz) Min. 55dB (1 to 2GHz) Min. 45dB (2 to 3GHz) |
500Vrms | -40°C to +85°C |
 |

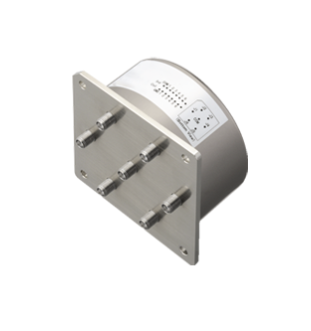

RD Series Coaxial Switches | SPDT,Transfer, SP6T |
4.5V DC to 24V DC | SMA | Min. 55 dB to Min. 70 dB | 500Vrms | -55deg to +85deg |
 |
RV Series Coaxial Switches | SPDT | 12V DC, 24V DC, 4.5V DC | 500Vrms | Min. 40 dB to Min. 70 dB | 500Vrms | -55deg to +85deg |
 |

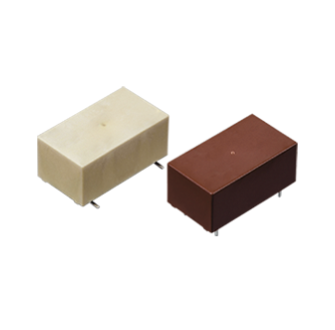

RE Series Relays (ARE_C90) | 1c | 3V DC to 24V DC | aaSMD,THDaa | Min. 55dB (to 900MHz), Min. 35dB (to 2.6GHz) | 1000Vrms | -40°C to +70°C |
 |
 |
 |
