| Image | Series | PACKAGE | TERMINAL TYPE | I/O ISOLATION VOLTAGE | OUTPUT SIDE: MAX. LOAD CURRENT | OUTPUT SIDE: LOAD VOLTAGE | AMBIENT TEMPERATURE |
 |

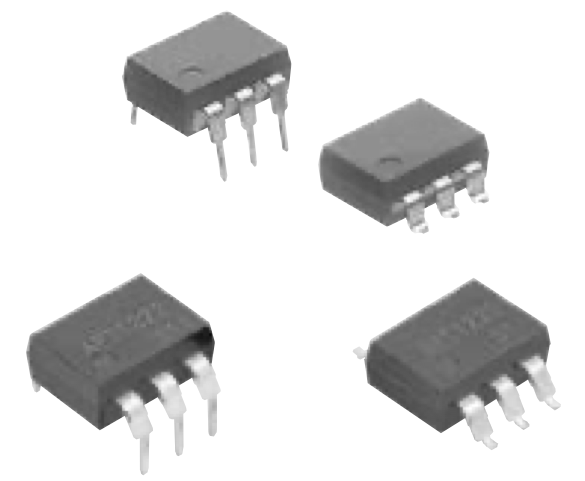

APT Series Phototriac Coupler | DIP4pin to SOP4pin | SMD, THD |
5,000Vrms, 3,750Vrms | 3A, 2A | 75 to 250Vrms | N/A |
 |

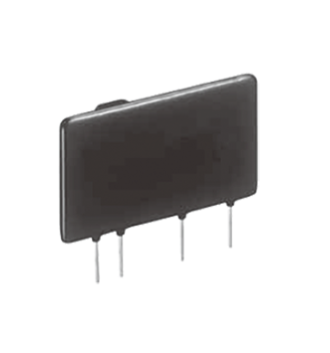

AQ8 Series Solid State Relay | SIL4pin | THD | 3,000 Vrms between input and output | N/A | aN/Aaaa | -30°C to +80°C -22°F to +176°F |
 |

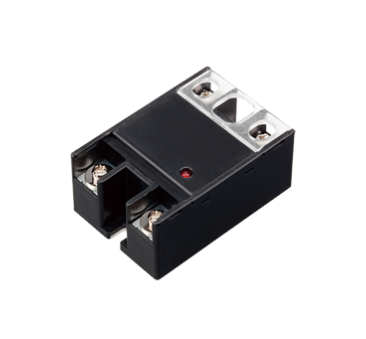

AQ-A Series Solid State Relay | N/A | Screw | 4,000 Vrms between input and output 2,500 Vrms between input, output and case |
75 to 250Vrms | 25A, 40A, 15A | -20°C to +80°C -4°F to +176°F (Non-condensing at low temperatures) |
 |

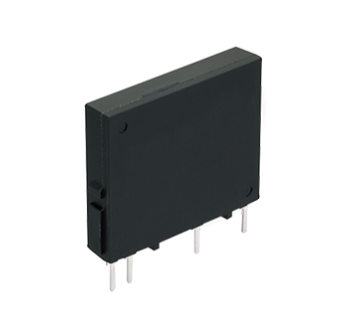

AQ-G Series Solid State Relay | SIL4pin | THD | 3,000 Vrms between input and output | 1A, 2A | 75 to 264Vrms | -30°C to +80°C -22°F to +176°F (Non-condensing at low temperatures) |
 |

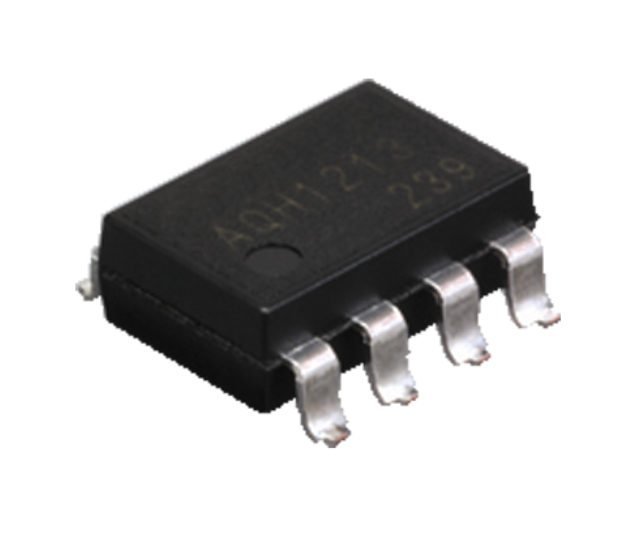

AQ-H Series Solid State Relay | DIP8pin, SMD8pin | SMD, THD |
5,000Vrms | N/A | N/A | N/A |
 |

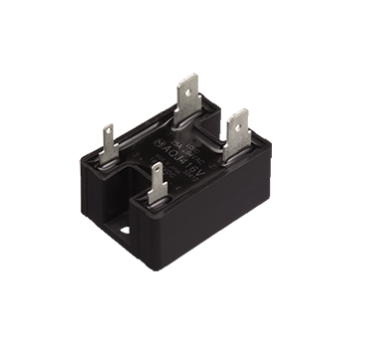

AQ-J Series Solid State Relay | N/A | Plug in | 3,000 Vrms between input and output 2,500 Vrms between input, output and case |
10A to 25A | 75 to 264Vrms | -30°C to +80°C -22°F to +176°F (Non-condensing at low temperatures) |
 |

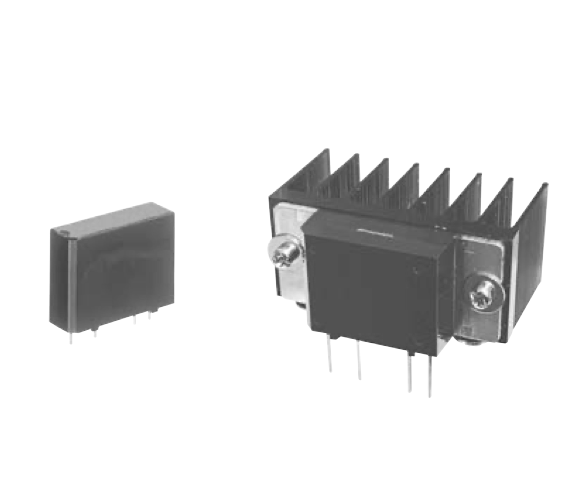

AQ1 Series Solid State Relay | SIL4pin | THD | 4,000 Vrms between input and output 2,500 Vrms between input, output and case |
3A, 10A | 75 to 250Vrms | -30°C to +80°C -22°F to +176°F |
 |
 |
 |
