2A and greater load rating in Polarized, Non-Polarized, High Capacity DC, General Purpose, and Safety configurations. UL, CSA, C-UL, TUV, VDE, and SEMKO certifications.



v

Image	Series	MAX. SWITCHING VOLTAGE	CONTACT ARRANGEMENT	MAX. SWITCHING CURRENT	PROTECTIVE CONSTRUCTION	ELECTRICAL LIFE

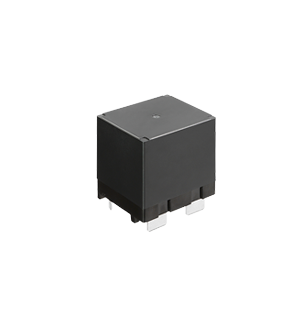

	HE Series Relays PV Type	490 V AC, 48 V DC, 490 V AC, 60 V DC	1a	35A,48A,90A	Flux-resistant	N/A
	HE-S Series Relays	480 V AC, 110 V DC, Form A contact: 480 V AC, 110 V DC Form B contact: 277 V AC, 30 V DC	2a,2a1b	Form A contact:35A, 40 A Form B contact:1A	Flux-resistant	N/A
	DW Series Relays	277 V AC, 250 V AC	N/A	N/A	Flux-resistant	N/A
	HE-N Series Relays	800 V AC, 60 V DC	1a	120A	Flux-resistant	N/A

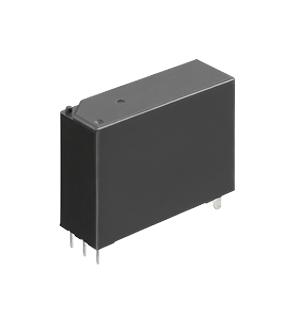

	DJ-H Series Relays	480 V AC	1a	50A	Flux-resistant	N/A
	LQ Series Relays	250 V AC, 30 V DC	1a,1c	10A(NO),3A(NC)	Sealed	N/A

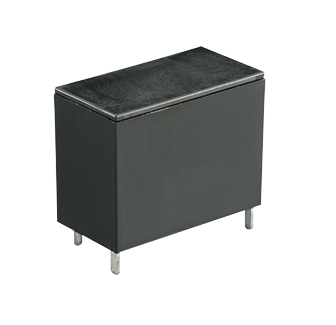

	LF-G Series Relays	250 V AC	1a	22A,33A	Flux-resistant	N/A

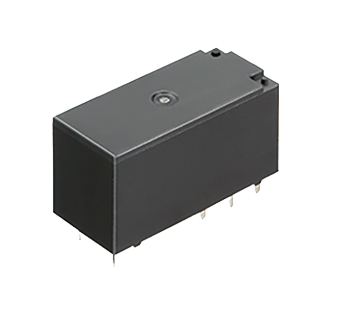

	LZ-N Series Relays	440 V AC	1a,1c	16A	Flux-resistant	N/A
	LD-P Series Relays	277 V AC, 30 V DC	1a	5A	Sealed	N/A
	PA-N Series Relays	250 V AC, 110 V DC (0.4 A)	1a	5A	Sealed	N/A
	PF Series Relays	250 V AC	1a,1c	6A	Sealed	N/A
	DE Series Relays	250 V AC, 30 V DC	1a,1a1b,2a	8A,10A	Sealed	N/A
	DSP Series Relays	250 V AC, 125 V DC (0.2 A)	1a,1a1b,2a	5A,8A	Sealed	N/A
	DK Series Relays	250 V AC, 125 V DC (0.2 A)	1a,1a1b,2a	8A,10A	Sealed	N/A
	DJ Series Relays	250 V AC	1a,1b,1c,1a1b,2a,2b,2c	10A,16A	Flux-resistant	N/A
	HE Series Relays	277 V AC, 30 V DC	1a,2a	25A,30A	Flux-resistant, Dust Cover	N/A
	LF Series Relays	250 V AC	1a	20A	Flux-resistant	N/A

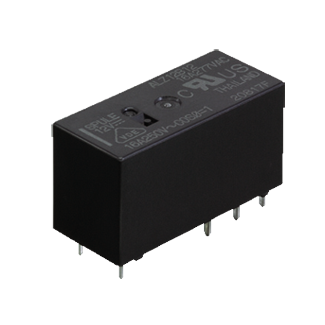

	LZ Series Relays	440 V AC	1a,1c	16A	Flux-resistant	N/A

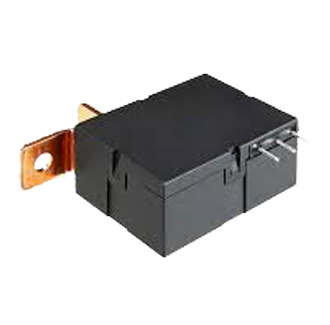

	DZ-S Series Relays	276 V AC	1a	90A	Dust Cover	N/A
	JW Series Relays	250 V AC, 30 V DC	1a,1c,2a,2c	5A,10A	Sealed, Flux-resistant	N/A
	S Series Relays	250 V AC, 48 V DC	2a2b,3a1b,4a	3A,4A	Sealed	N/A
	SP Series Relays	250 V AC, 30 V DC (48 V DC: Max. 2 A)	2c,4c	10A,15A	Dust Cover	N/A
	ST Series Relays	250 V AC, 30 V DC	1a,1b,2a	8A	Sealed	N/A
	NC Series Relays	250 V AC, 220 V DC	2c,4c	4A,5A	Sealed, Dust Cover	N/A
	DY Series Relays	250 V AC, 125 V DC (0.2 A)	1a,1a1b	8A,10A	Sealed	Min. 1x105
	JV-N Series Relays	277 V AC, 110 V DC (0.3 A)	1a	10A,16A	Flux-resistant	N/A

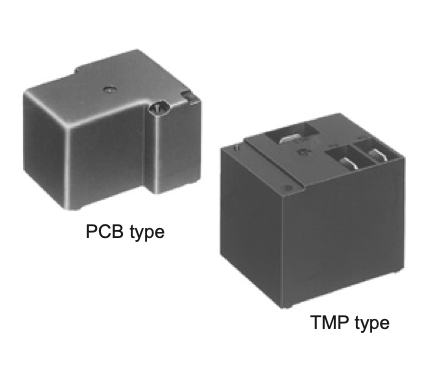

	JT-N Series Relay	277 V AC	1a,1c	10A,20A,30A	Sealed	Min. 1x105 ope. (20 A 277 V AC at resistive load) (at 20 times/min.), N.O.: Min. 1x105 ope. (20 A 277 V AC at resistive load) N.C.: Min. 1x105 ope. (10A 277V AC at resistive load) (at 20 times/min.)
	JT-V Series Relays	277 V AC	1a,1c	10A,20A,30A	Sealed, Dust Cover	N/A
	JS Series Relays	277 V AC, 100 V DC (0.5A)	1a,1c	6A,10A	Sealed, Flux-resistant	N/A
	LK-G Series Relays	277 V AC	1a	10A,16A	Flux-resistant	N/A
	LK-P Series Relays	277 V AC, 30 V DC	1a	5A,10A	Flux-resistant	N/A
	LK-Q Series Relays	277 V AC	1a	5A,8A	Flux-resistant	N/A
	LK-T Series Relays	277 V AC	1a	5A	Flux-resistant	N/A
	PQ Series Relays	250 V AC, 110 V DC (0.3 A)	1a	5A	Sealed	N/A
	LE Series Relays	277 V AC	1a	16A	Flux-resistant	N/A
