V3 Series Addendum

Specification change of MINI-CONTACTORS

We will change into material of case and contact (No cadmium) concerning environment. Therefore we will change figure for some models. We ask you to shift to new model. Present existing model with present brand will be continued until March 2006)



  • Contact material will be changed to No cadmium .
  • Case and body will be changed from Thermosetting resin to Thermoplastic resin
  • There will be no change in installation or function
  • Item number will be changed to distinguish from Present existing model. (Base Product Name remains the same with suffix change from K to N)
  • You can see comparison of present existing model and new model below
  • Brand is Panasonic.

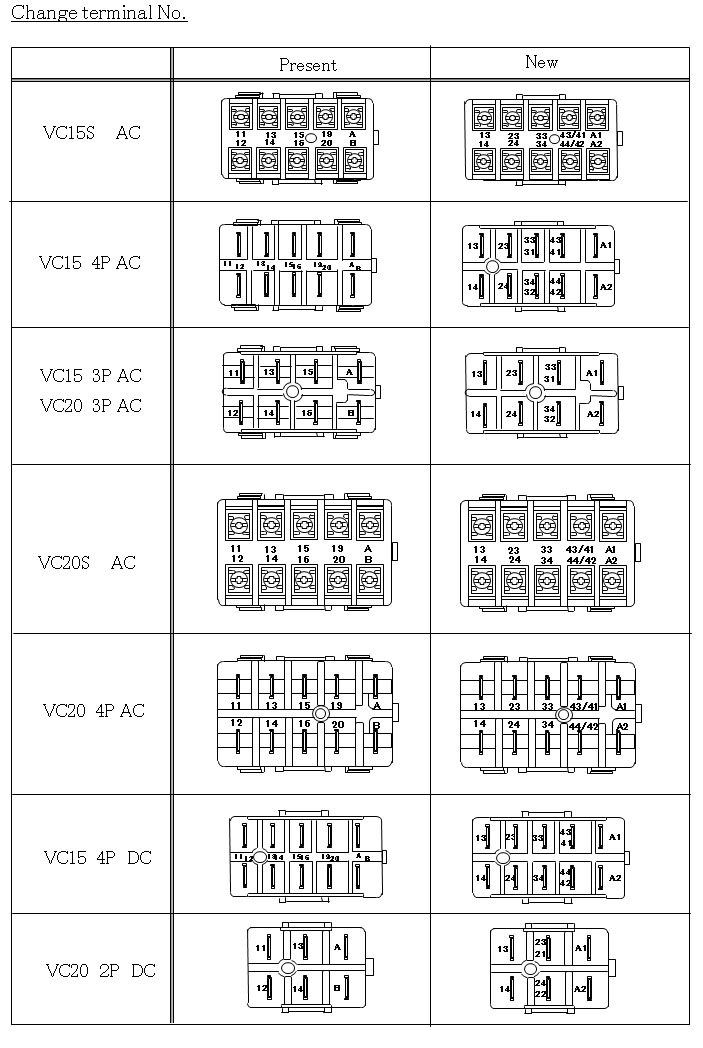

  • Change terminal No. (Reference below)

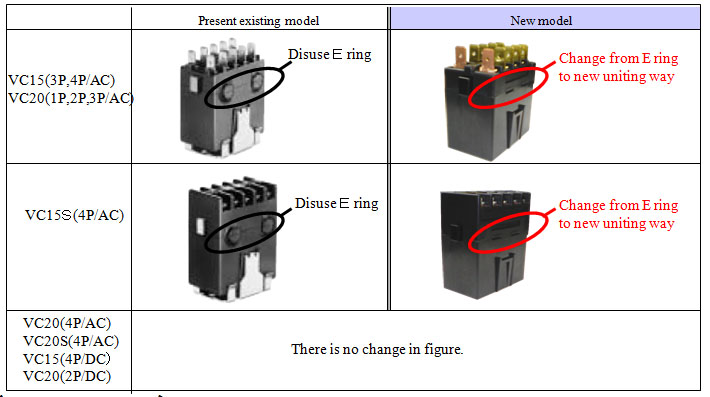

Figure of Present existing model and New model

(Click on the Image to Englarge)





Figure of Present existing model and New model



We will gradually change from November 2005 *It is possible we may ask you to take present model during shift (We will inform you by order).



(Click on the Image to Englarge)
