Signal level switching is the forte of these relays. Typically double-pole, double-throw configurations with gold-flashed contacts, American Zettler offers second, third, and fourth generation telecom relay designs.



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods

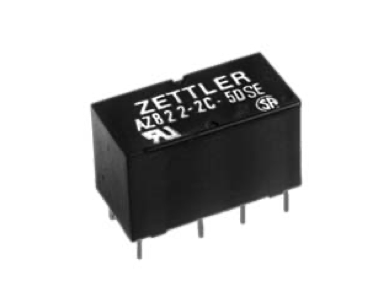

	AZ822	2A	DPDT	UL/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ8222	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	PCB mount
	AZ826	2A	DPDT	-	1500 Vrms dielectric	PCB mount/socket mount

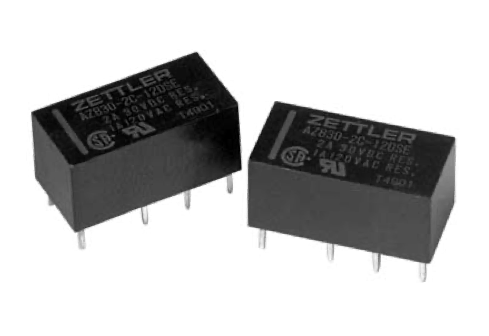

	AZ830	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ830P	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832	2A	DPDT	UL/FCC	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P1	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ832P2	2A	DPDT	UL/FCC Part 68	1500 Vrms dielectric	DIP PCB solder/socket mount
	AZ8461	2A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ8462	2A	DPDT	UL/CUR	1500 Vrms dielectric	PCB mount
	AZ850	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ850P1	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ850P2	1A	DPDT	UL/CSA/FCC Part 68	1000 Vrms dielectric	DIP PCB solder/socket mount
	AZ851	1A	DPDT	UL/CSA/FCC Part 68	1250 Vrms dielectric	SMT mount
	AZ8512	2A	DPDT	UL/CUR	1000 Vrms dielectric	PCB mount
	AZ852	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ8521	2A	DPDT	UL/CUR	1800 Vrms dielectric	PCB mount
	AZ852P	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852PS	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852PS1	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852S	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ852S1	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ853	1A	DPDT	UL/CSA	1500 Vrms dielectric	PCB mount
	AZ956	1A	SPDT	UL/CSA	1500 Vrms dielectric	PCB and SMT mount
	AZ956P	1A	SPDT	UL/CSA	1500 Vrms dielectric	PCB and SMT mount
	AZ957	1A	SPDT	UL/CUR/FCC Part 68	1250 Vrms dielectric	DIL pitch terminals/surface mount available
	AZ9571	1A	SPDT	UL/CUR	1000 Vrms dielectric	PCB mount
	AZ846 Dicontinued	2A	2C DPDT Bifuracated	UL file E43203; CSA file 700339	1000 Vrms dielectric	PCB mount
	AZ5 Dicontinued	1A-2A	1C SPDT	UL file E43203; CSA file 74120	1250 Vrms dielectric	PCB mount
