American Zettler’s industry-leading offering of “solar” relays are designed to be used in high power sources such as: power amplifiers, solar inverters, wind inverters, electric vehicle charging, or any application requiring high loads to be switched and carried.



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods
	AZ2150W	30A	SPST	UL/CUR/VDE	4000 Vrms dielectric	PCB mount
	AZ2501L	60A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB mount
	AZ2704	30A	SPST/DPST	UL/CUR/TÜV	4000 Vrms dielectric	PCB mount
	AZ2800	40A	DPST/DPDT	UL/CUR/VDE	4000 Vrms dielectric	panel mount w/quick connects
	AZ2850	40A	DPST/DPDT	UL/CUR/VDE	4000 Vrms dielectric	PCB mount
	AZ733W	12A	DPST	UL/CUR/TUV	5000 Vrms dielectric	PCB solder/socket mount
	AZ733WC	10A	DPDT	UL/CUR	5000 Vrms dielectric	PCB solder/socket mount
	AZ742	10A	DPST/DPDT	UL/CSA/VDE	5000 Vrms dielectric	PCB solder/socket mount
	AZDC6	12.5A	DPST	CSA	4000 Vrms dielectric	PCB mount
	AZEV116	16A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZEV132	32A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZEV140	40A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZPRD	50A	1 Form A,B,C,X,Y, 2 Form A,B,C	UL/CUR	2200 Vrms dielectric	panel mount
	AZSR1160	160A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount

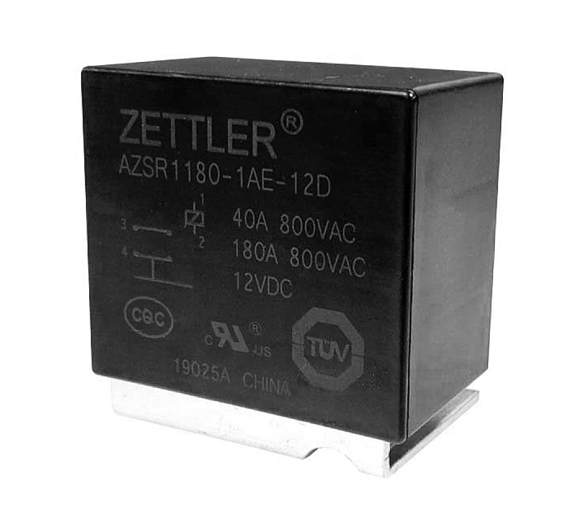

	AZSR1180	180A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZSR1200	200A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount

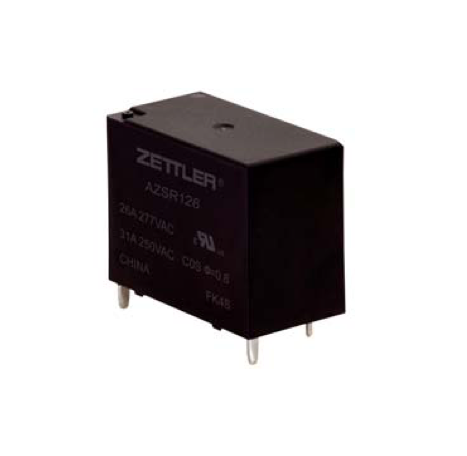

	AZSR126	26A	SPST	UL/CUR/VDE Pending	4500 Vrms dielectric	PCB mount

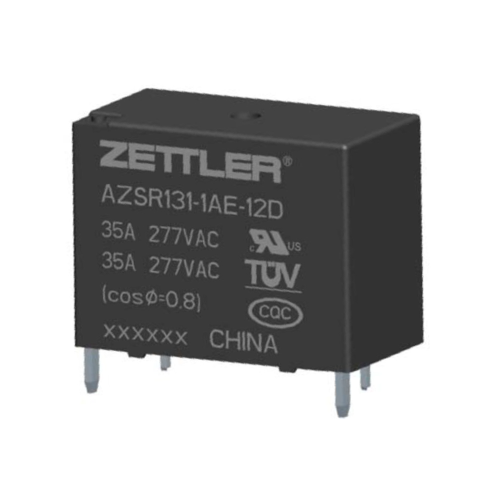

	AZSR131	35A	SPST	UL/CUR/TUV	4500 Vrms dielectric	PCB mount

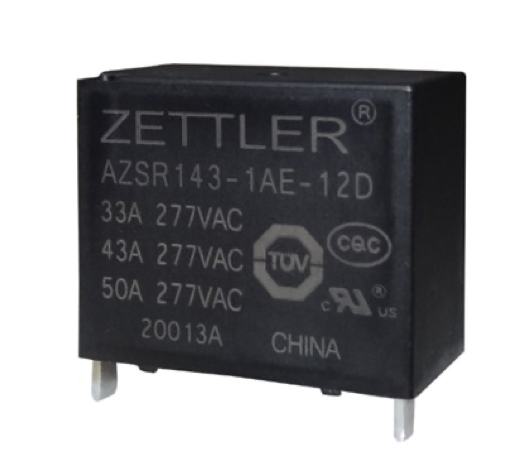

	AZSR143	50A	SPST	UL/CUR/TUV	4500 Vrms dielectric	PCB mount

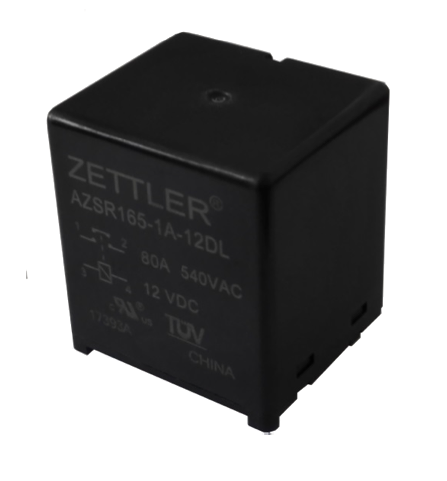

	AZSR165	80A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount

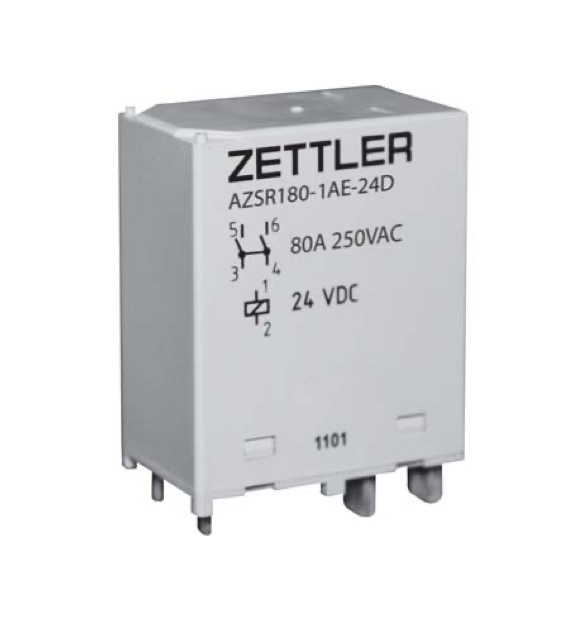

	AZSR180	80A	SPST	UL/CUR/VDE	5000 Vrms dielectric	PCB mount

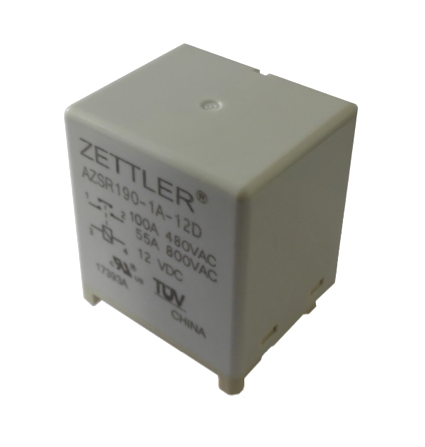

	AZSR190	100A	SPST	UL/TUV	5000 Vrms dielectric	PCB mount
	AZSR235	35A	SPST/DPST	UL/CUR/VDE	5000 Vrms dielectric	PCB mount

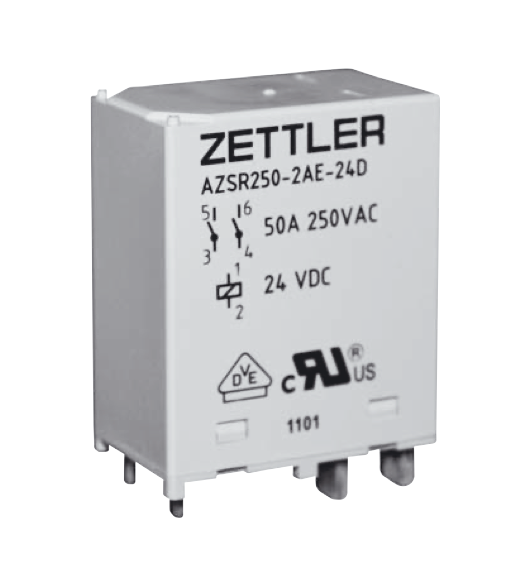

	AZSR250	55A	SPST/DPST	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
