As a world leader in relays for HVAC/R, motor control, and power designs, American Zettler has a power relay to suit the needs of the most demanding circuits and environments. 41-200 Amps



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods

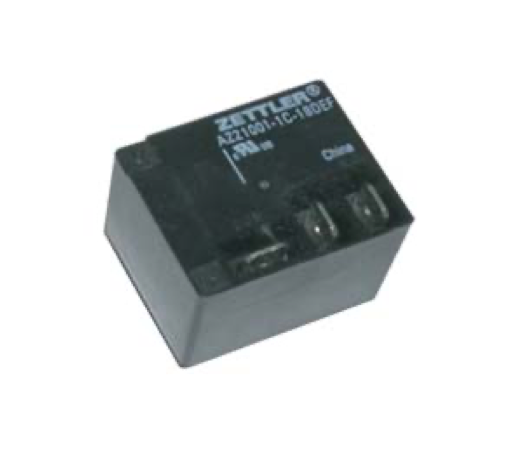

	AZ21001	50A	SPST/SPDT	UL/CUR/TÜV pending	2500 Vrms dielectric	PCB mount w/quick connects

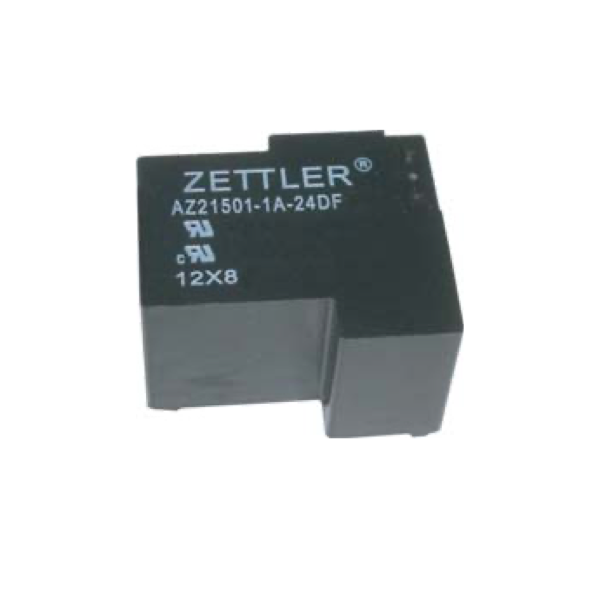

	AZ21501	50A	SPST/SPDT	UL/CUR/TÜV pending	2500 Vrms dielectric	PCB mount
	AZ21501P	50A	SPST/SPDT	UL/CUR	2500 Vrms dielectric	PCB mount

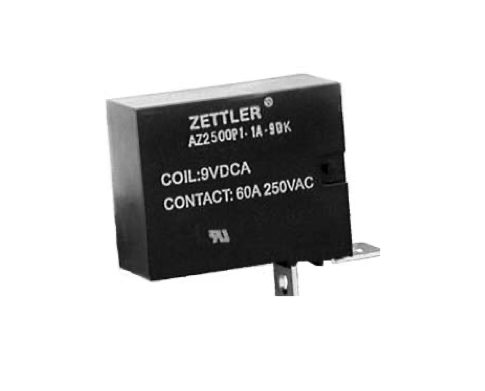

	AZ2500	60A	SPST	UL/CUR	4000 Vrms dielectric	heavy tabs
	AZ2501	50A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	heavy tabs
	AZ2501L	60A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB mount
	AZ2505	120A	SPST	-	4000 Vrms dielectric	Quick Connects
	AZ970/AZ971	45A	SPST/SPDT	-	500 VDC dielectric	PCB mount
	AZ9701/AZ9711	45A	SPST/SPDT	-	500 VDC dielectric	PCB mount
	AZ9701E/AZ9711E	45A	SPST/SPDT	-	500 VDC dielectric	PCB mount
	AZ970E/AZ971E	45A	SPST/SPDT	-	500 VDC dielectric	PCB mount
	AZ979	80A	SPST/SPDT	-	500 VDC dielectric	quick connect/socket w/bracket
	AZ980	80A	SPST/SPDT	-	500 VDC dielectric	quick connect/socket mount
	AZ9801	70A	SPST	-	1500 Vrms dielectric	Quick Connects
	AZ983	80A	SPST/SPDT	-	500 Vrms dielectric	PCB mount
	AZ9831	70A	SPST	-	500 Vrms dielectric	PCB mount

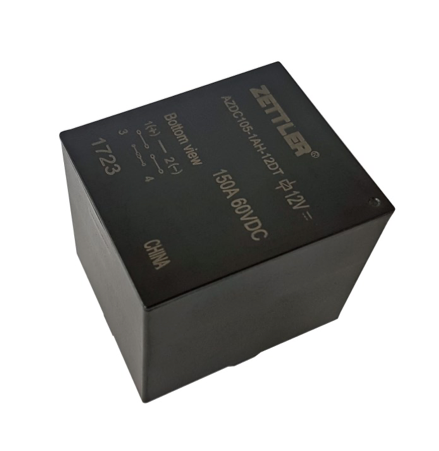

	AZDC105	150A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZPRD	50A	1 Form A,B,C,X,Y, 2 Form A,B,C	UL/CUR	2200 Vrms dielectric	panel mount
	AZSR1160	160A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZSR1180	180A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZSR1200	200A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZSR143	50A	SPST	UL/CUR/TUV	4500 Vrms dielectric	PCB mount
	AZSR250	55A	SPST/DPST	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
