As a world leader in relays for HVAC/R, motor control, and power designs, American Zettler has a power relay to suit the needs of the most demanding circuits and environments. 20-29 Amps



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods
	AZ576	20A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB mount
	AZ576P	20A	1 Form A, B, C	UL/CUR	5000 Vrms dielectric	PCB mount
	AZ725	20A	SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB solder/socket mount
	AZ755	20A	SPDT	UL/CUR/TV	5000 Vrms dielectric	PCB solder/socket mount
	AZ7555	20A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB solder/socket mount
	AZ757	20A	SPST	UL/CUR	5000 Vrms dielectric	PCB mount w/quick connects
	AZ762F	20A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount w/quick connects
	AZ762P	20A	SPST/SPDT	UL/CUR	4400 Vrms dielectric	PCB mount
	AZ769	25A	SPST	UL/CUR	4500 Vrms dielectric	PCB mount

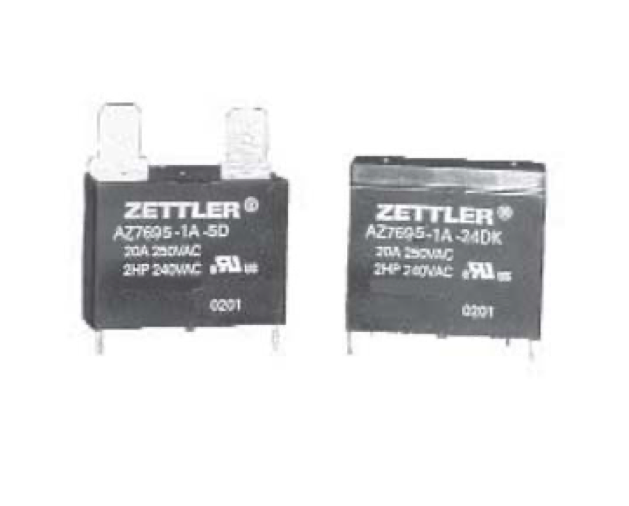

	AZ7695	25A	SPST	UL/CUR	5000 Vrms dielectric	PCB mount w/quick connects
	az9	20A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB mount w/quick connects
	AZ9321	20A	SPST/SPDT	UL/CUR	3000 Vrms dielectric	PCB mount
	AZ9421A	20A	SPDT	-	2500 Vrms dielectric	PCB mount
	AZ9422	20A	SPST/SPDT	UL/CUR/TUV	2000 Vrms dielectric	PCB mount
	AZ943T	20A	SPST/SPDT	UL/CUR	2500 Vrms dielectric	PCB mount
	AZ9471	25A	SPDT	-	500 Vrms dielectric	PCB mount
	AZ975/AZ976	20A	1 Form A,B,C,V,W,X	-	500 Vrms dielectric	PCB mount
	AZ9751/AZ9761	20A	1 Form A,C,U,W	-	500 Vrms dielectric	PCB mount
	AZ977	20A	SPDT	-	500 VDC dielectric	quick connect/socket
	AZ978	20A	SPST/SPDT	-	1000 VDC dielectric	PCB solder/socket mount
