As a world leader in relays for HVAC/R, motor control, and power designs, American Zettler has a power relay to suit the needs of the most demanding circuits and environments. 11-19 Amps



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods
	AZ164	15A	DPDT-4PDT	UL/CUR	1500 Vrms dielectric	PCB mount
	AZ1641	5-20A	1-4PDT	UL/CUR	1500 Vrms dielectric	PCB mount

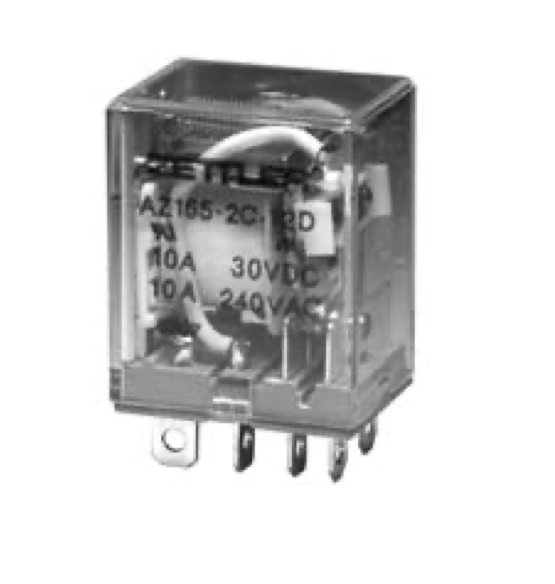

	AZ165	15A	DPDT-4PDT	UL/CUR	1500 Vrms dielectric	solder/socket mount
	AZ1651	5-20A	1-4PDT	UL/CUR	1500 Vrms dielectric	solder/socket mount
	AZ166	15A	DPDT-4PDT	UL/CUR	1500 Vrms dielectric	solder/top flange mount
	AZ1661	5-20A	1-4PDT	UL/CUR	1500 Vrms dielectric	solder/panel mount
	AZ733	12A	DPST/DPDT	UL/CUR/TUV	5000 Vrms dielectric	PCB solder/socket mount
	AZ733W	12A	DPST	UL/CUR/TUV	5000 Vrms dielectric	PCB solder/socket mount
	AZ761	12A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
	AZ762	16A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
	AZ7621	16A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
	AZ7621P	16A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB mount

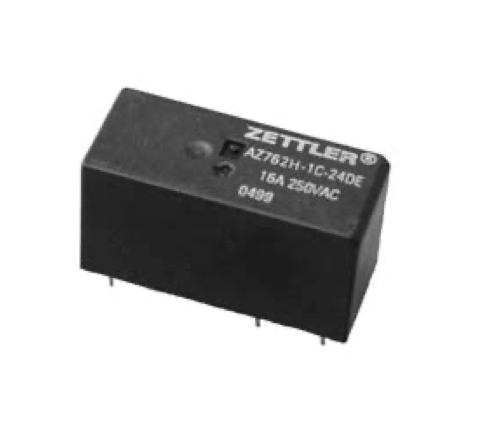

	AZ762H	16A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount
	AZ762T	16A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount

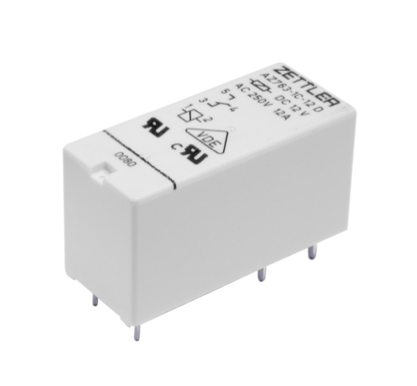

	AZ763	12A	SPST/SPDT	UL/CSA/VDE	5000 Vrms dielectric	PCB solder/socket mount

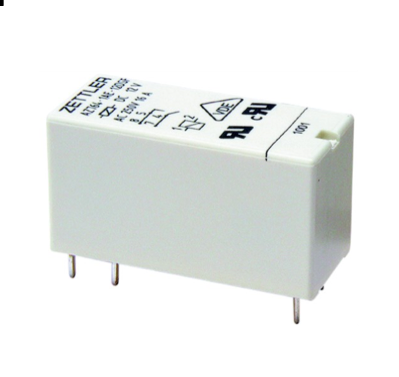

	AZ764	16A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB solder/socket mount
	AZ932	15A	SPST-NO/SPST-NC/SPDT	UL/CUR	1500 Vrms dielectric	PCB mount

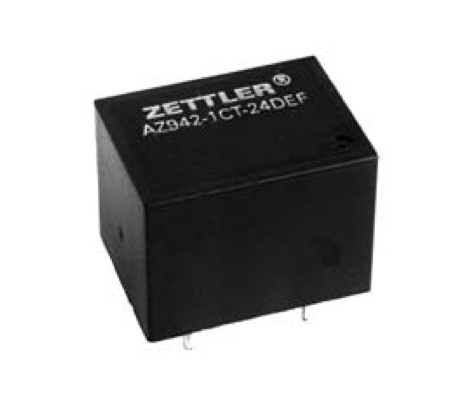

	AZ942	16A	SPST/SPDT	UL/CUR	1750 Vrms dielectric	PCB mount

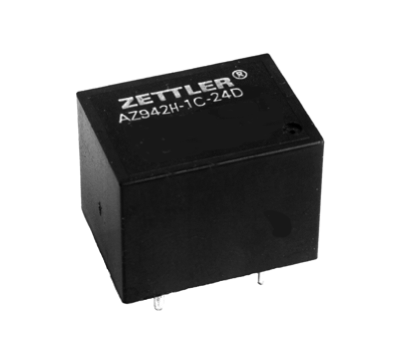

	AZ942H	16A	SPST/SPDT	UL/CUR/VDE	2000 Vrms dielectric	PCB mount
	AZ943	15A	SPST/SPDT	UL/CUR/TÜV	1500 Vrms dielectric	PCB mount

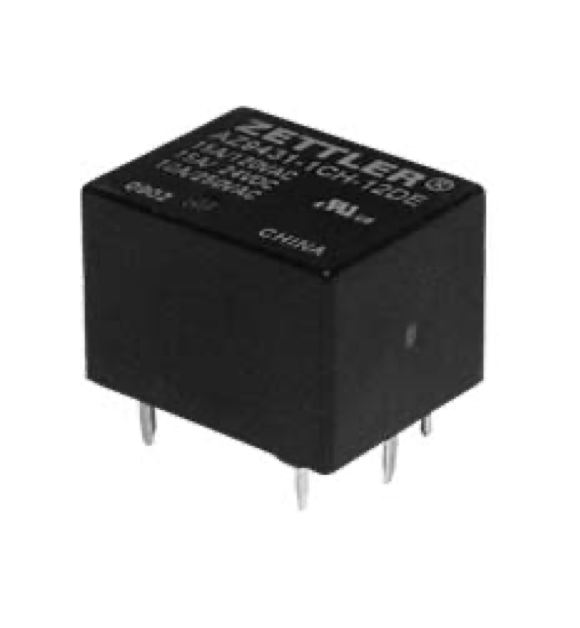

	AZ9431	15A	SPST/SPDT	UL/CUR	1500 Vrms dielectric	PCB mount
	AZ943S	15A	SPST/SPDT	UL/CUR/TÜV	1500 Vrms dielectric	PCB mount
	AZ948	16A	SPST	UL	1500 Vrms dielectric	PCB mount
	AZ9481	16A	SPST/SPDT	UL/CUR/TÜV	2500 Vrms dielectric	PCB mount

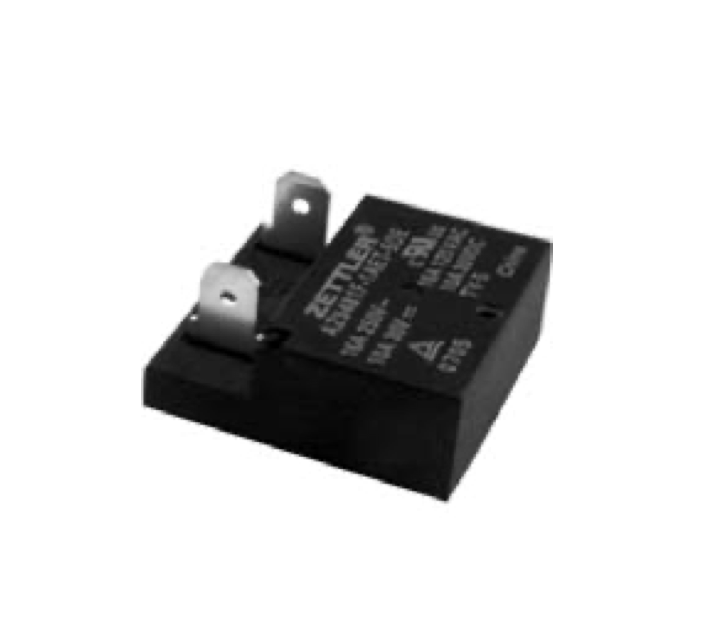

	AZ9481F	16A	SPST	UL/CUR/TÜV	2500 Vrms dielectric	PCB mount w/quick connects
	AZDC110	16A	SPST	UL/TUV	5000 Vrms dielectric	PCB mount
	AZEV116	16A	SPST	UL/TUV	4000 Vrms dielectric	PCB mount
	AZKUP	13A	1-3PDT	UL/CUR	2200 Vrms dielectric	solder/socket mount
