| Image | Series | Rating (A) | Contact Configuration | Regulatory Approvals | Dielectric Strength | Mounting Methods |
 |
AZ947 | 20A | SPST/SPDT | - | 500 Vrms dielectric | PCB mount |
|
AZ9471 | 25A | SPDT | - | 500 Vrms dielectric | PCB mount |
 |
AZ970/AZ971 | 45A | SPST/SPDT | - | 500 VDC dielectric | PCB mount |
 |
AZ9701/AZ9711 | 45A | SPST/SPDT | - | 500 VDC dielectric | PCB mount |
 |
AZ9701E/AZ9711E | 45A | SPST/SPDT | - | 500 VDC dielectric | PCB mount |
 |
AZ970E/AZ971E | 45A | SPST/SPDT | - | 500 VDC dielectric | PCB mount |
 |
AZ973 | 40A | SPST | - | 500 Vrms dielectric | Quick Connects |
 |
AZ9731 | 40A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connects |
 |

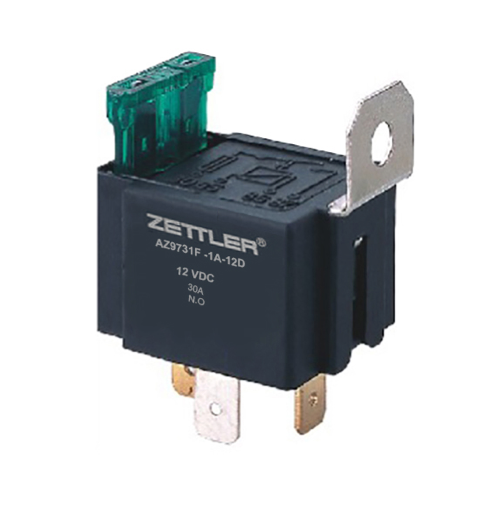

AZ9731F | 30A | SPST | - | 500 Vrms dielectric | Quick Connects |
 |
AZ9731T | 50A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connects |
 |
AZ9731T5 | 50A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connects |
 |
AZ9733 | 40A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connects/PCB Terminals/ Socket |
 |

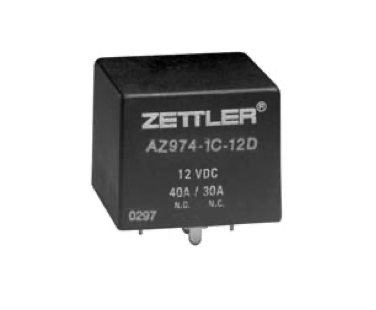

AZ974 | 40A | SPST | - | 500 Vrms dielectric | PCB mount |
 |
AZ9741 | 40A | SPST/SPDT | - | 500 Vrms dielectric | PCB mount |
 |
AZ975/AZ976 | 20A | 1 Form A,B,C,V,W,X | - | 500 Vrms dielectric | PCB mount |
 |
AZ9751/AZ9761 | 20A | 1 Form A,C,U,W | - | 500 Vrms dielectric | PCB mount |
 |
AZ977 | 20A | SPDT | - | 500 VDC dielectric | Quick Connect/Socket |
 |
AZ978 | 20A | SPST/SPDT | - | 1000 VDC dielectric | PCB solder/Socket Mount |
 |
AZ979 | 80A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connect/Socket w/bracket |
 |

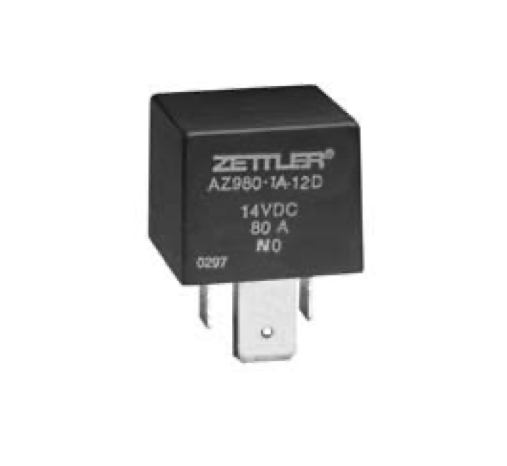

AZ980 | 80A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connect/Socket Mount |
 |
AZ9801 | 70A | SPST | - | 1500 Vrms dielectric | Quick Connect |
 |
AZ983 | 80A | SPST/SPDT | - | 500 Vrms dielectric | PCB mount |
 |
AZ9831 | 70A | SPST | - | 500 Vrms dielectric | PCB mount |
 |
AZ984 | 20A | SPST/SPDT | - | 500 Vrms dielectric | Socket Mount |
 |
AZ9841 | 40A | SPST/SPDT | - | 500 Vrms dielectric | PCB solder/Socket Mount |
 |
AZ9861 | 40A | SPST/SPDT | - | 500 Vrms dielectric | Quick Connects |
 |

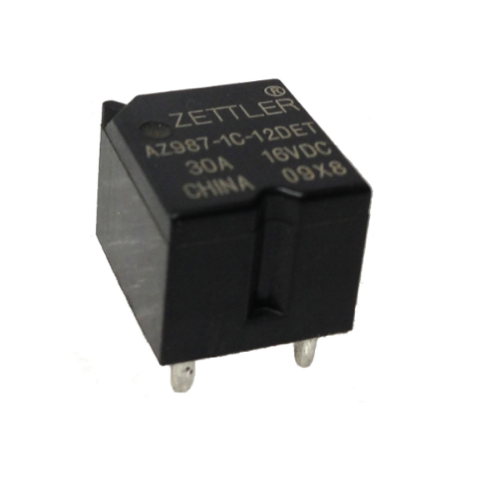

AZ987 | 30A | SPST/SPDT | - | 500 Vrms dielectric | PCB mount |
 |
AZ9871 | 30A | SPST/SPDT/DPST/DPDT | - | 500 Vrms dielectric | PCB mount |
 |

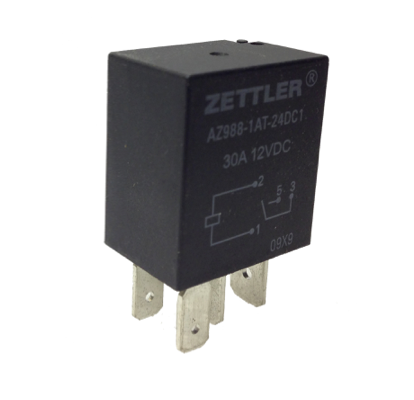

AZ988 | 30A | SPST/SPDT | - | 500 VDC dielectric | PCB mount w/Quick Connects |
 |
AZ9882 | 40A | SPST/SPDT | - | 500 VDC dielectric | Plug-in/Solder Terminal |
 |
AZ989 | 25A | SPDT/DPDT | - | 500 Vrms dielectric | PCB mount |
 |
AZ9891J | 30A | SPDT/DPDT | - | 500 Vrms dielectric | PCB mount |
 |

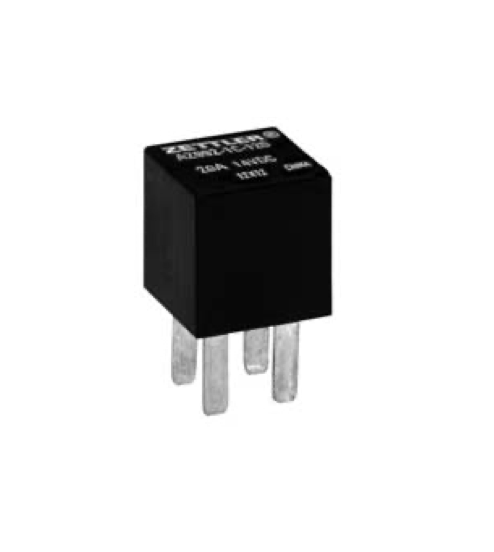

AZ992 | 20A | SPST | - | 500 Vrms dielectric | Quick Connect |
 |
 |
 |
