These relays are rated to the highest standards with respect to load and temperature, always keeping cost competitiveness in mind. 2-10 Amps



Image	Series	Rating (A)	Contact Configuration	Regulatory Approvals	Dielectric Strength	Mounting Methods

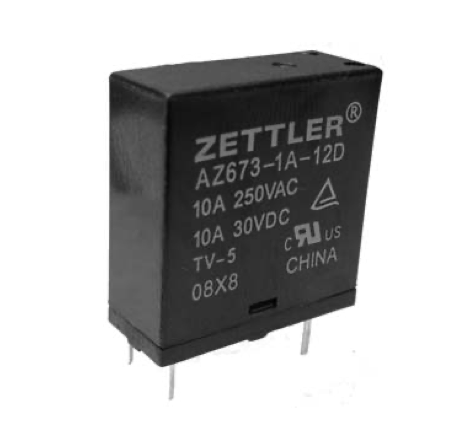

	AZ673	10A	SPST	UL/CUR	4000 Vrms dielectric	PCB mount
	AZ6951	5A	SPST	UL/CUR	3000 Vrms dielectric	PCB mount

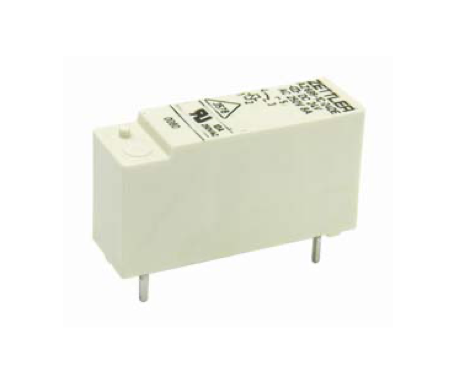

	AZ696	10A	SPST/SPDT	UL/CUR/VDE	4000 Vrms dielectric	PCB mount
	AZ6962	10A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount

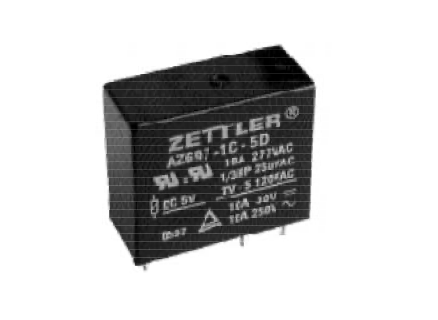

	AZ697	10A	SPST/SPDT	UL/CUR/TUV	5000 Vrms dielectric	PCB solder/socket mount
	AZ6975	10A	SPST/SPDT	UL/CUR	5000 Vrms dielectric	PCB mount

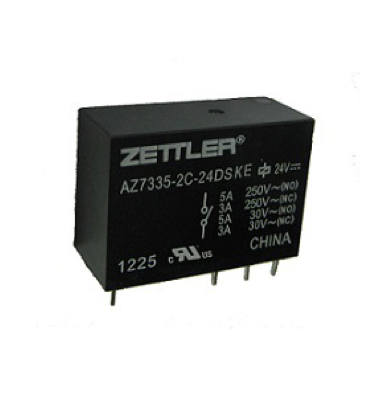

	AZ7335	8A	DPST/DPDT	UL/CUR/TUV	5000 Vrms dielectric	PCB mount

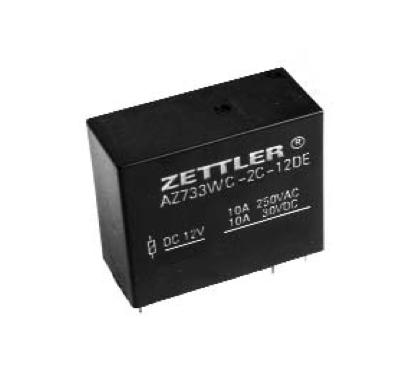

	AZ733WC	10A	DPDT	UL/CUR	5000 Vrms dielectric	PCB solder/socket mount

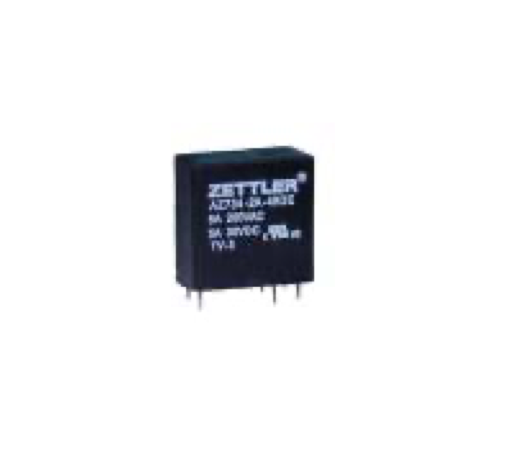

	AZ734	5A	DPST	UL/CUR	4000 Vrms dielectric	PCB mount
	AZ742	10A	DPST/DPDT	UL/CSA/VDE	5000 Vrms dielectric	PCB solder/socket mount
	AZ743	10A	DPST/DPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB mount/socket mount

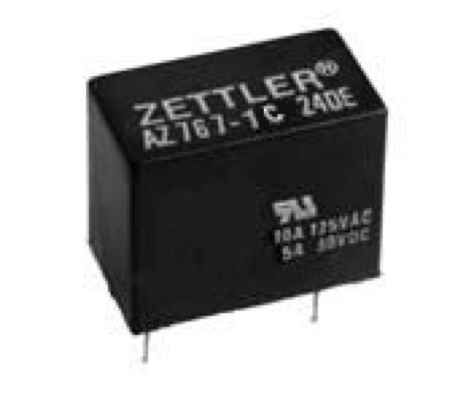

	AZ767	3A	SPDT	UL/CUR	2500 Vrms dielectric	PCB solder
	AZ7671	10A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB Mount

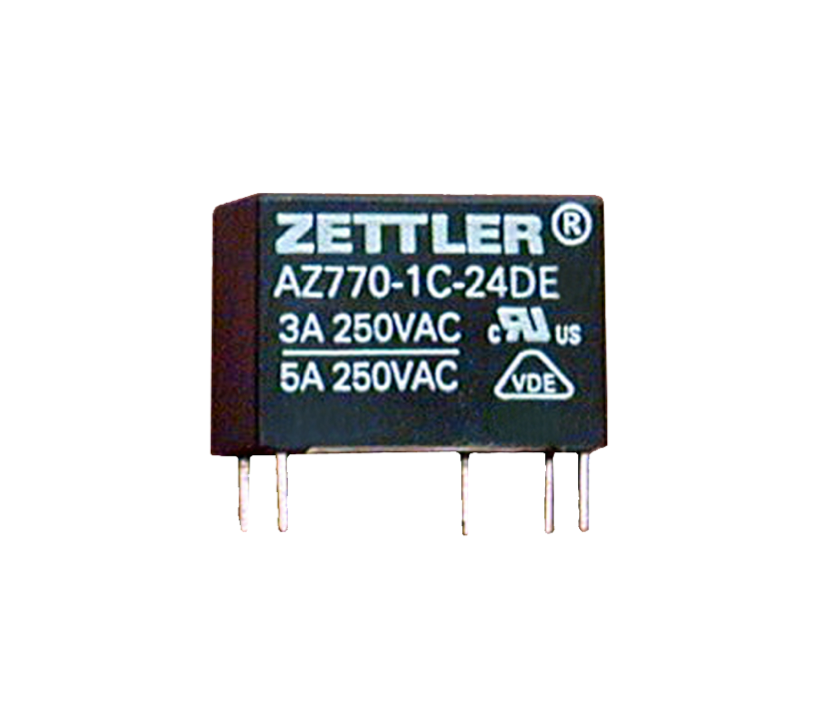

	AZ770	5A	SPST/SPDT	UL/CUR/VDE	5000 Vrms dielectric	PCB Mount

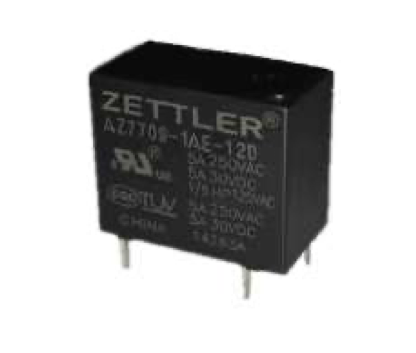

	AZ7709	10A	SPST	UL/CUR	4000 Vrms dielectric	PCB Mount
	AZ8	3-6A	SPST/SPDT	UL/CUR/VDE	3000 Vrms dielectric	PCB Mount
	AZ880	10A	SPST/DPST/SPST-NO+SPST-NC	UL/CUR	4000 Vrms dielectric	PCB Mount
	AZ888	8A	SPST/DPST/SPST-NO+SPST-NC	UL/CUR	3000 Vrms dielectric	PCB Mount
	AZ8A	10A	SPDT	UL/CUR	2500 Vrms dielectric	PCB Mount
	AZ937	3A	SPST	UL/CUR	4000 Vrms dielectric	PCB Mount

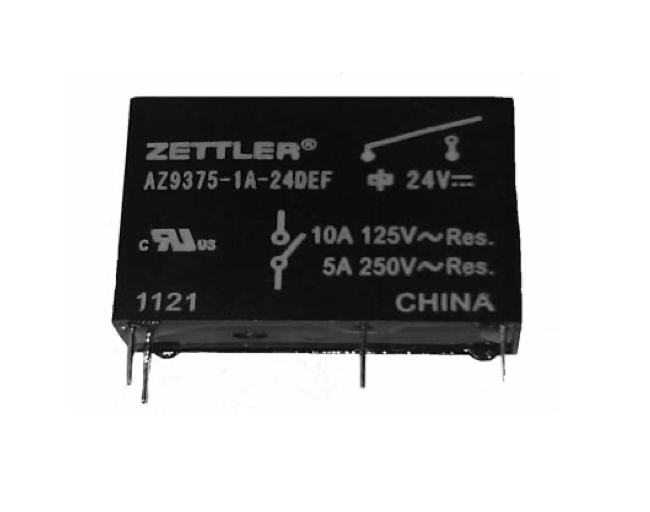

	AZ9375	10A	SPST	UL/CUR	4000 Vrms dielectric	PCB Mount
	AZ940	10A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB Mount

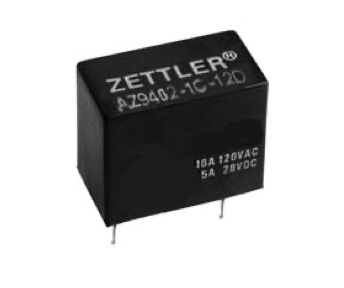

	AZ9402	10A	SPST/SPDT	-	4000 Vrms dielectric	PCB Mount

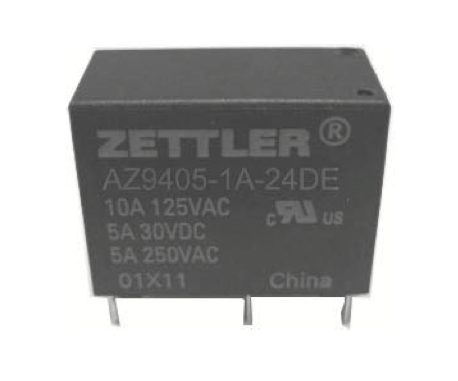

	AZ9405	10A	SPST/SPDT	UL/CUR	4000 Vrms dielectric	PCB Mount

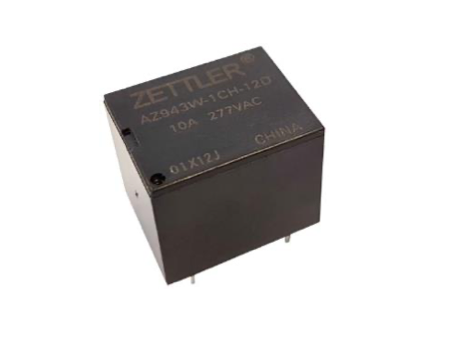

	AZ943W	10A	SPST/SPDT	UL/CUR/TÜV Pending	1500 Vrms dielectric	PCB Mount
