Typical Specifications

Rating（ Resistive load） 2A 14.5V DC
Contact resistance （Initial / After operating life） 100mΩ max. / 100mΩ max.
Operating force 4.17±0.74N
Operating life（ With load） 30,000 cycles（ 2A 14.5V DC）
Circuit configuration 1-pole, 2-position

Downloads

Document File Type File Size Download

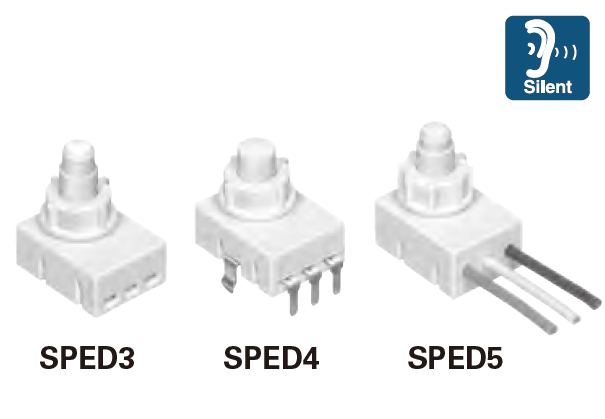

SPED3/4/5 Series Datasheet PDF 1.0 MB
