Typical Specifications

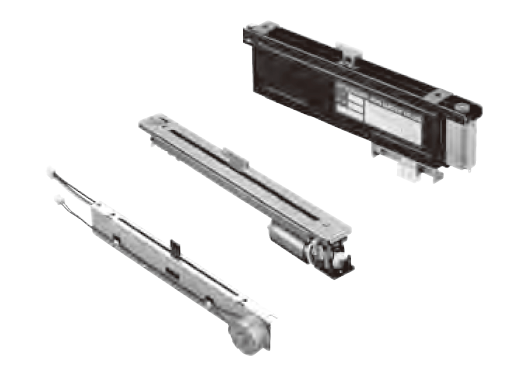

  Motor N fader Motor NKfader Motor V fader
Total resistance tolerance ±20%
Maximum operating voltage 10V DC, 200V AC（ Travel：60mm）
10V DC, 500V AC（ Travel：100mm）
Operating force 0.8±0.5N 0.4±0.25N -
Operating life 30,000
cycles		 300,000
cycles		 100,000
cycles
Rated voltage of motor 10V DC 8V DC
Maximum current of motor 800mA or less （at 10V DC） 625mA or less （at 5V DC）
Operating temperature range −10℃ to ＋60℃

Downloads

Document File Type File Size Download
RS**N1*M/RSA0K1*V/RSA0V11M Series Datasheet PDF 1.5 MB
