Contributing to Compact, High0Density Optical Transceivers



• Lens with a 0.6mm narrow width and a chucking area for greater mounting efficiency
• Achieves NA 0.5 despite the 0.6mm width (0.45mm focal length at 1310nm)
• Employs lead-free glass material, achieving compliance with RoHS 6 and REACH

• Multi-channel optical transceivers

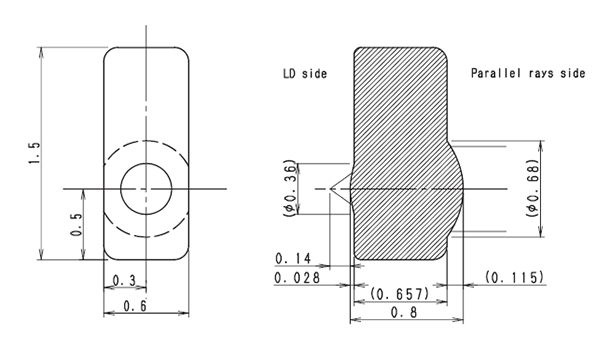

Dimensions(W×D×H)	0.6 × 0.8 × 1.5mm
Wavelength (λ)	1310nm, 1550nm
Effective NA	0.5, 0.55
Focal length (f)	0.45mm (1310nm)
Target device	Chip type LD (2-lens system)
L1 [WD]	0.14mm (1310nm)
Beam diameter	0.45mm (1310nm) at effective NA
Operating temperature range	-40 to +85°C

Document	File Type	File Size	Download
Datasheet	PDF	193 KB
