Digital Temperature & Humidity Sensor PC Board Mount Module Type HSHCAL Series

Digital Temperature & Humidity Sensor

Addition of a PC board mount module to the lineup helps improve equipment performance and design freedom

Easily installed within end products in the optimal location for performing measurement
Employs capacitive sensing, enabling operation in 0 to 100% relative humidity
Supports I²C interface output

Air purifiers
Air-conditioning system
Refrigerators and other major home appliances

Typical Specifications

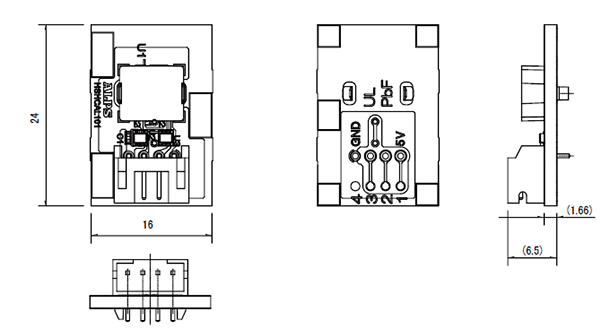

Dimensions（W×D×H）	24 × 16 × 6.5mm
Supply voltage	2.5 - 5.5V
Operating temperature range	-20 to +85°C
Operating humidity range	0 to 100% RH
Humidity sensitivity	4LSB/% RH
Temperature sensitivity	50LSB/°C
Accuracy	+/-5%RH（＠25°C/40, 60% RH）

Digital Temperature & Humidity Sensor

Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	387 KB
