1.8μA low current consumption (in Low Power mode)
High sensing precision with ±0.7hPa absolute and ±0.05hPa relative pressure accuracy

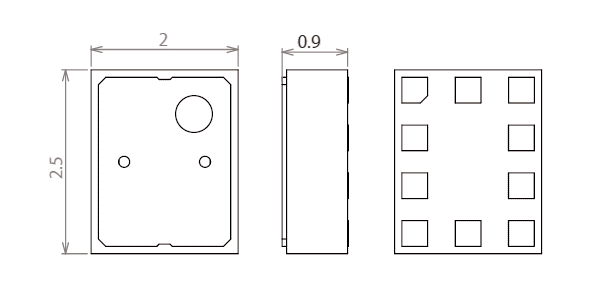

Industry-smallest dimensions of 2.0 × 2.5 × 0.9mm
1 Built-in temperature compensation circuit means compensation by the host product is not required
Built-in 16-step FIFO

Dimensions(W×D×H)	2.0 × 2.5 × 0.9 mm
Output	Digital (I2C, SPI)
Operating temperature range	-40 to +85℃
Absolute pressure accuracy	±0.7hPa
Relative pressure accuracy	±0.05hPa
Pressure range	300 to 1100hPa
Noise	0.013hPa (High Resolution mode)
Supply voltage	1.7 to 3.6 V
Current consumption	1.8μA (1Hz sampling, Low Power mode)
