Liqualloy™ Power Inductor (Chip Type) GLCL Series (2520 size)

Alps - GLCL Series Power Inductor

Employs ultra-low core loss material for high ripple currents and high-frequency switching DC-DC converters

Employs second-generation Liqualloy™, a low-loss material developed 　　by Alps
Excellent performance during high-frequency (5MHz) switching
Terminals on the bottom contribute to high-density mounting
Compatible with high currents

DC-DC converters for mobile devices including digital cameras, smartphones, tablets and portable game consoles

Typical Specifications

Dimensions(W×D×H)	2.5 x 2.0 x 1.2 mm	2.5 x 2.0 x 1.0 mm
Inductance at 1MHz	0.47 to 4.7μH	0.47 to 4.7μH
Direct current resistance	26 to 185mΩ	31 to 230mΩ
Saturation current ΔL/L=30%	4.5 to 1.5A	4.4 to 1.2A
Heat rating current ΔT=40℃	4.7 to 1.6A	4.6 to 1.3A

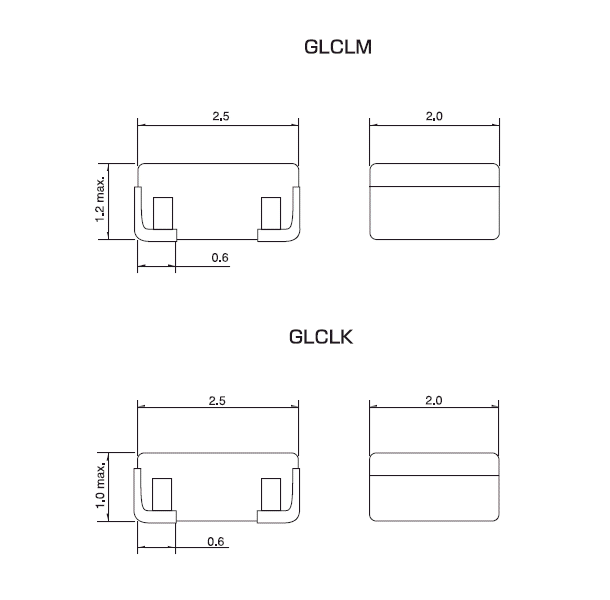

Alps - GLCL Series Power Indctor Dimensions

Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	129 KB
