microSD™ Memory Card Connector SCHA9B Series.

Alps - SCHA9B Series - Memory Card Connector

The industry's thinnest* product height when installed (0.69mm)

Covering the top and bottom of the connector with a metal frame enables a structure resilient to scooping
The detector switch employs a sliding contact structure resilient to foreign matter
Hard lock structure makes it harder to remove a locked-in card
Terminals face in the direction of card insertion, preventing terminal buckling

Smartphones, other mobile devices and tablets
Digital cameras and camcorders

Typical Specifications

Dimensions	14.97 × 15.37mm (Installed height: 0.69mm)
Media eject method	Push-push
Mount type	Surface mount
Mount system	Standard mount (PC Board cut-off type)
Card eject stroke	3.2 mm
Stand-off	-0.7mm
No. of insertion and removal cycles	10,000 cycles

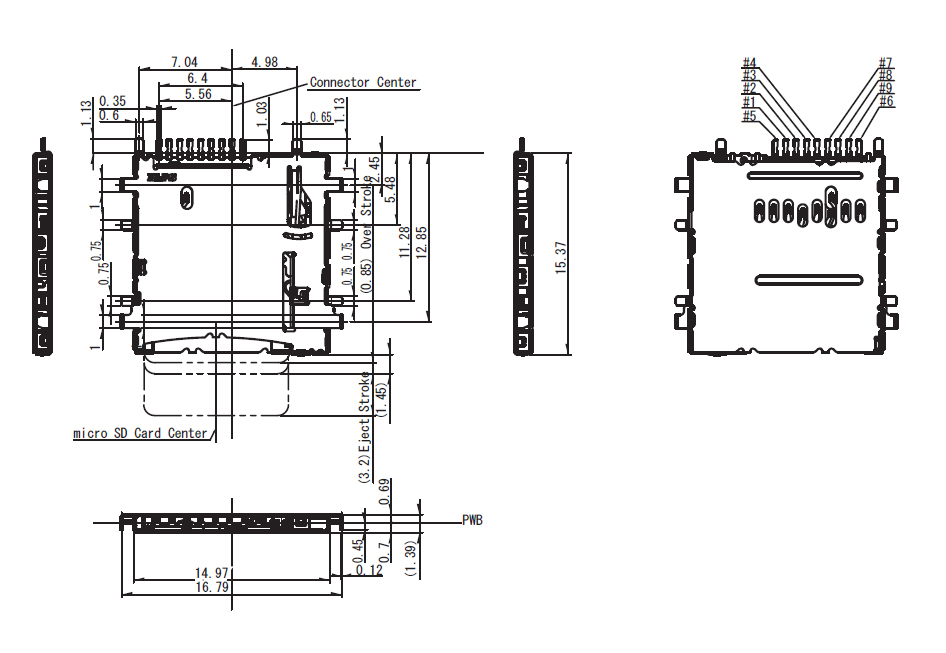

Dimensions (click to enlarge)

Alps - SCHA9B Series - Memory Card Connector - Dimensions
