Non-Contact Magnetic Rotary Sensor Achieving High Precision and Long Life



• Use of magnetic element enables high-precision, non-contact detection
• Long operating life of 10 million cycles
• Screw holes and connector terminal for easy installation

• Sewing machine pedals
• Foot controllers for musical instruments, amusement machines and dental chairs
• Other angle detection mechanisms for industrial equipment

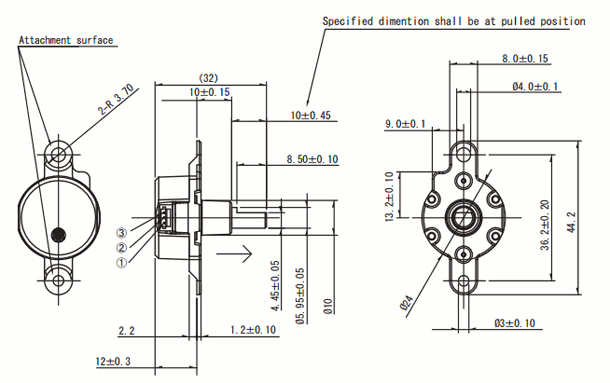

Dimensions(diameter×Ｄ)	24mm diam.(excl. screw hole section)×32mm(incl. shaft)
Mechanical angle of rotation	360°
Electrical angle	+/- 15°
Linearity	+/- 2%
Rated voltage	5V
Output voltage range	0.3 to 4.3V
Operating temperature range	0 to 50°C

Document	File Type	File Size	Download
Datasheet	PDF	135 KB
