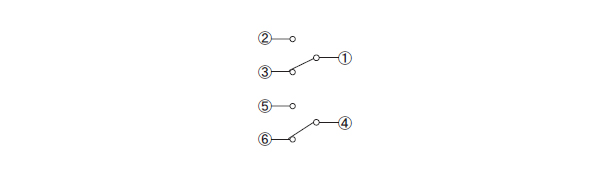

Two-pole simultaneous changeover switch for stable contact independent of control position and speed



• Synchronized switching between the two internal circuits helps maintain redundancy of the equipment's circuits
• Snap action and double-sided sliding contact structure enable stable contact at any control position and high reliability with particulate and impact resistance
• Surface mount type able to undergo reflow soldering with surrounding components

• Automotive control switches, such as for electric parking brakes
• Emergency buttons and industrial equipment safety mechanisms
• Mechanism operation detection in automotive equipment and home appliances

Max./Min. rating (resistive load)		50mA 18V DC / 50μA 5V DC
Contact resistance (initial/after lifetime)		75mΩ max. / 200Ω max.
Operating force		1±0.5N
Without load	Without load	300,000 cycles
	With load	300,000 cycles (50mA 18V DC)
Two-pole synchronization timing		15ms max.
