Switch with wires added to the industry's smallest waterproof detector switch series.

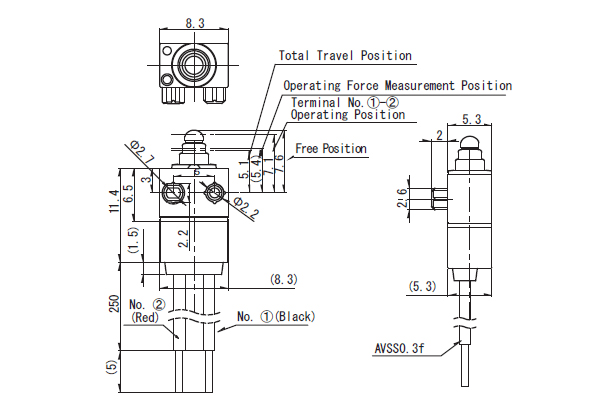

• Available in 2 types, with horizontal or vertical wire, to match the direction of installation
• IP67 dust and water resistance, including for the wire section.
• Use of double-sided sliding contact ensures high contact reliability in shock or vibration environments
• Supports up to 40-degree diagonal pushing.

• Detection of opening/closing or position for automotive parts (e.g. sliding doors, back doors, trunk, hood)
• Detection applications for white goods or industrial equipment used around water

Max./Min. rating (resistive load)		0.1A 12V DC/ 50μA 5V DC
Contact resistance (initial/after lifetime)		500mΩ max. / 1Ω max.
Operating force		1+/-0.5N
Operating life	Without load	300,000 cycles (Standard type) / 1,000,000 cycles (Long-life type
	With load	300,000 cycles (Standard type) / 1,000,000 cycles (Long-life type)



Document	File Type	File Size	Download
Datasheet	PDF	148 KB
