The industry's widest measurement range and world's smallest size (Acording to Alps Electric as of February 2013 ) with an LGA package (1.6 x 16 x 0.7mm).



• Dynamic range of ±2.4mT achieved for each axis
• Achieves both low current consumption (1/3 compared to earlier models) and high S/N

• Navigation functions in small, mobile terminals such as smartphones
• Motion detection such as for game consoles
• Detection of location information using compact equipment like wristwatches or digital cameras

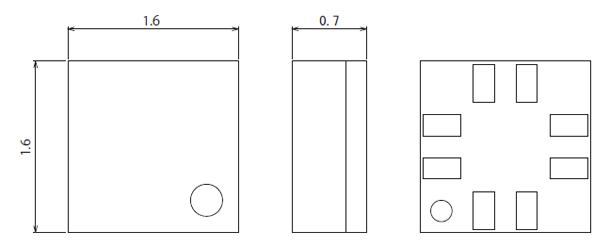

Dimensions (W×D×H)	1.6 x 1.6 x 0.7mm
Measurement range	±2.4mT
Output resolution	0.15μT / LSB
Operating temperature	-40 to +85℃
Analog supply voltage	1.8 to 3.6V
Digital supply voltage	1.65 to AVDD
Average current consumption	60μA typ.(active) / 3μA typ.(standby)
Interface	I2C slave interface (Standard mode / Fast mode / Fast mode plus / HS mode)



Document	File Type	File Size	Download
Datasheet	PDF	120 KB
