High-precision motion detection with space-saving design.



• Two-elements-in-one package enabling detection of rotation speed and direction in a single package
• High robustness against gap variation achieved by adoption of high-sensitive elements, contributing to improved design flexibility
• Built-in arithmetic circuit offering a selection of four detection modes
• Low current consumption 3mA

• Rotation detection for home appliances, industrial machinery and in-car components

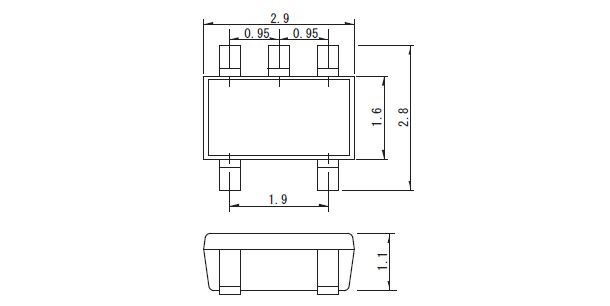

Items	Specifications
Output pulse from NS pole	2phase×1
Supply voltage	3 to 30V
Current consumption	3mA
Storage temperature range	-40 to +150℃
Operating temperature	-40 to +140℃
Magnetic sensitivity Off->On	+1mT±0.7mT
Magnetic sensitivity On->Off	-1mT±0.7mT
Operate frequency	Continuous drive
Output signal	Open drain
Output current (Isink	10mA



Document	File Type	File Size	Download
Datasheet	PDF	927 KB
