Compact Reflow Type Slide Potentiometer RS08U Series

High precision space saving design helps smaller and lighter set.

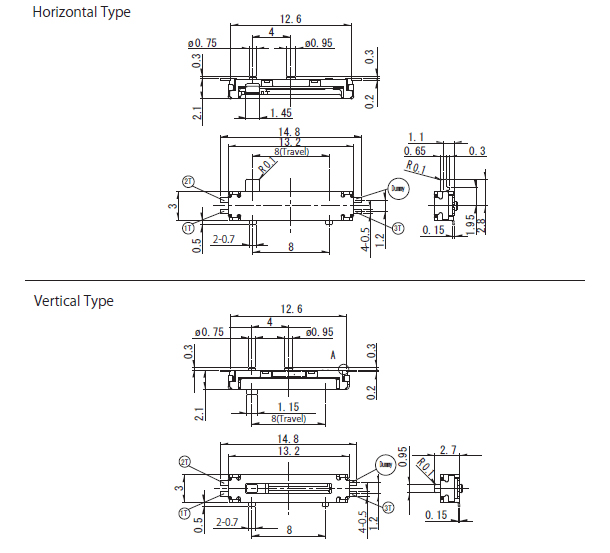

Compact size of 13.2 x 3 x 2.1mm(WxDxH).
Light operating force, good feeling.
Available for reflow soldering.

Portable device control for sound volume or brightness, etc.
Various position sensor for portable device or stational device.

Items	Specifications
Total resistance tolerance	± 30%
Maximum operating voltage	5V DC
Operating force	0.17 ± 0.15N
Operating life	10,000cycles
Operating temperature range	-10°C to +70°C

Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	146 KB
