30% more compact than the conventional SKRW series, yet original wide sweet spot metal dome offers equivalent operation area (0.7mm diameter).



• Compact / low-profile size of 3.3×2.9×0.35mm（W×D×H)
• Dust protection for contact reliability.
• Available for reflow soldering.

Applications

• For more downsized, low-profile and light weight needs; mobile phones, portable audio players, digital still cameras, digital camcorders, digital dictionaries, and notebook PCs, etc.

Specifications

Items	Specifications
Operating force	1.6N / 2.35N
Travel	0.15mm
Rating(max.)	DC 1 V / 10μA
Operating life	200,000cycles (1.6N) / 50,000cycles (2.35N)
Initial contact resistance	100mΩ max.

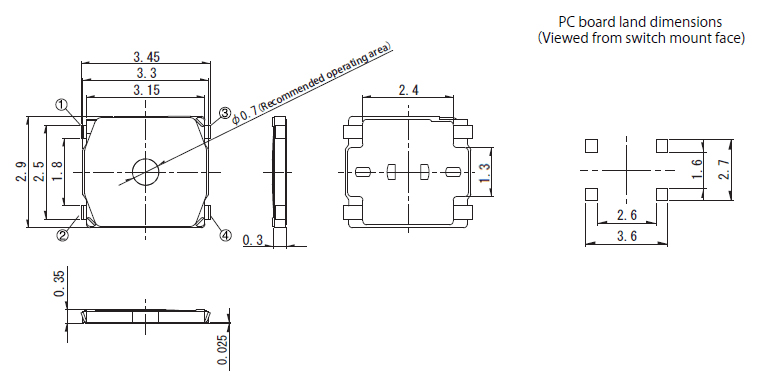

Dimensions (Click to Enlarge)

Documents and Downloads

Document	File Type	File Size	Download
Datasheet	PDF	131 KB
